Debian VLAN Configuration (Trunk Mode)

This section explains how to configure the lan interface in trunk mode for VLAN 10 and VLAN 20 using iproute2. You will learn later how to automate this configuration so it runs automatically at system startup.

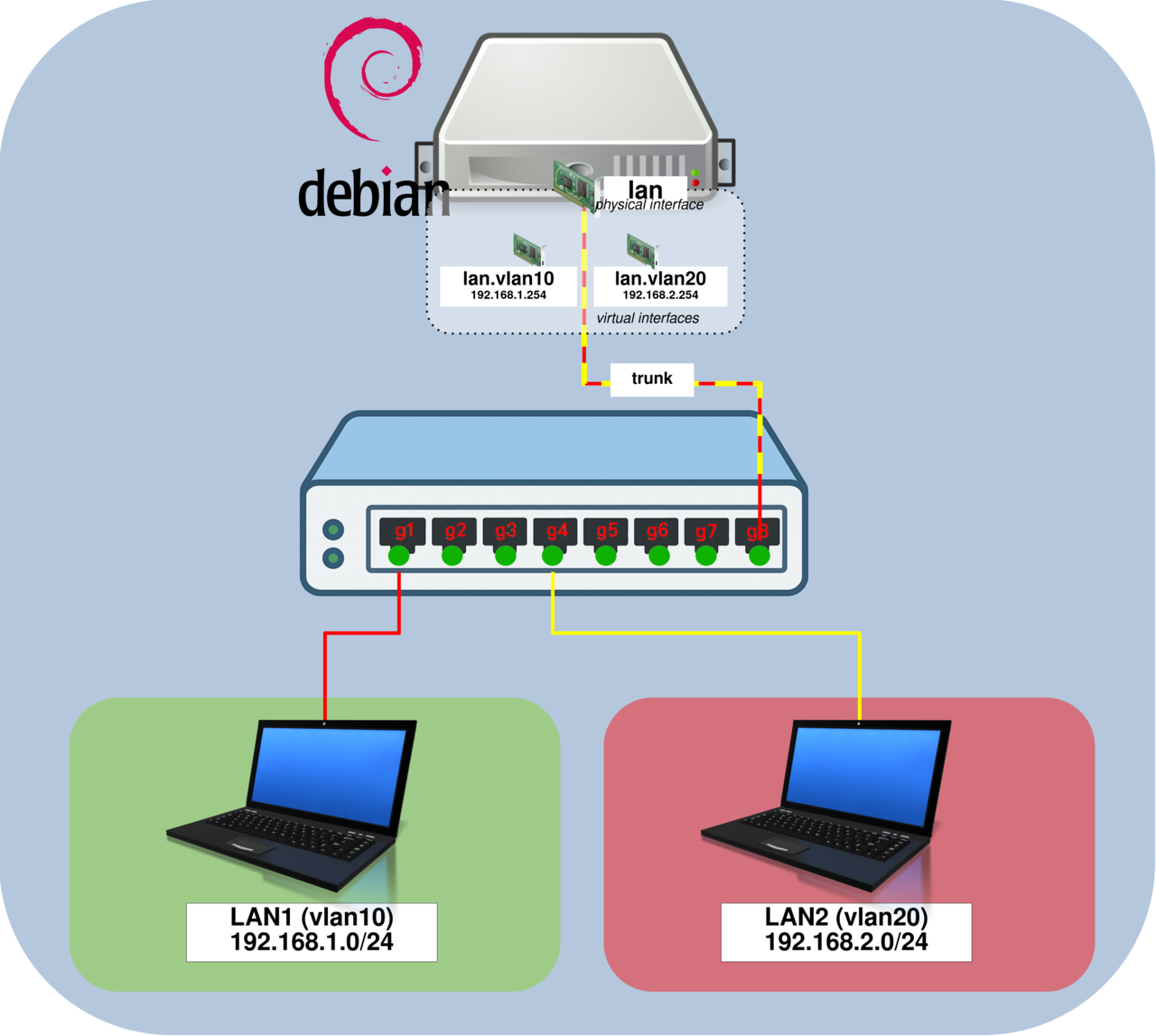

This configuration separates network traffic using VLANs and connects them to a Linux router through a trunk link.

• Create VLAN interfaces lan.vlan10 and lan.vlan20, then assign IP addresses:

root@host:~# ip link add link lan name vlan10 type vlan id 10
root@host:~# ip link add link lan name vlan20 type vlan id 20
root@host:~# ip link set vlan10 up
root@host:~# ip link set vlan20 up
root@host:~# ip addr add 192.168.1.254/24 dev vlan10
root@host:~# ip addr add 192.168.2.254/24 dev vlan20

Switch Configuration

In this section, we will configure a network switch positioned between the LAN segments and the Debian gateway. This switch will handle VLAN traffic and forward it to the trunk interface on the router.

• Configure interface g1 as an access port for VLAN 10:

switch# configure terminal
switch(config)# interface g1
switch(config-if)# switchport mode access
switch(config-if)# switchport access vlan 10

• Configure interface g4 as an access port for VLAN 20:

switch# configure terminal
switch(config)# interface g4
switch(config-if)# switchport mode access
switch(config-if)# switchport access vlan 20

• Configure interface g8 as a trunk port for VLAN 10 and VLAN 20:

switch# configure terminal
switch(config)# interface g8
switch(config-if)# switchport mode trunk
switch(config-if)# switchport trunk allowed vlan add 10,20

Routing and Policy-Based Routing (PBR)

• Enable IP forwarding to allow the Linux system to route packets between interfaces:

root@host:~# sysctl net.ipv4.ip_forward=1

• Edit the /etc/iproute2/rt_tables file and add a custom routing table that we will use to route through wan2 (used for LAN2 traffic):

#
# reserved values
#
255     local
254     main
253     default
0       unspec
#
# local
#
#1      inr.ruhep
200     table.wan2

• Add a default route in the wan2 routing table:

root@host:~# ip route add default via 10.20.20.254 dev wan2 table table.wan2

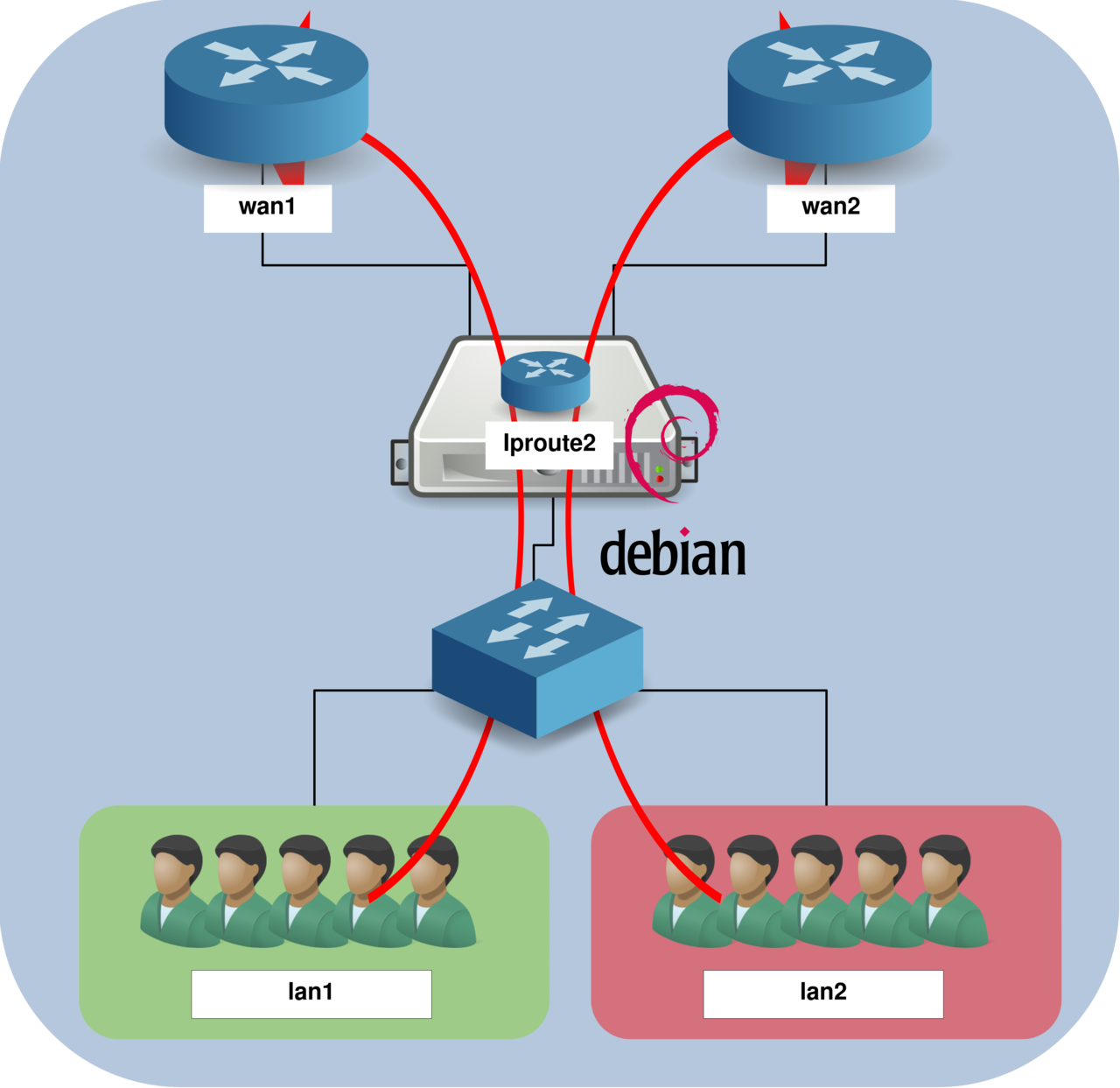

• Add policy-based routing rules to route LAN2 traffic through wan2. The first rule ensures that traffic generated by the router uses the main routing table, while the second rule routes LAN2 subnet traffic through the wan2 table:

root@host:~# ip rule add prio 160 from 192.168.20.254 lookup main
root@host:~# ip rule add prio 161 from 192.168.20.0/24 table table.wan2

These rules ensure that traffic originating from the LAN2 subnet is routed through the wan2 interface, while the router's own traffic continues to use the main routing table.

/etc/network/interfaces Configuration

• Edit the /etc/network/interfaces file and configure the following interfaces:

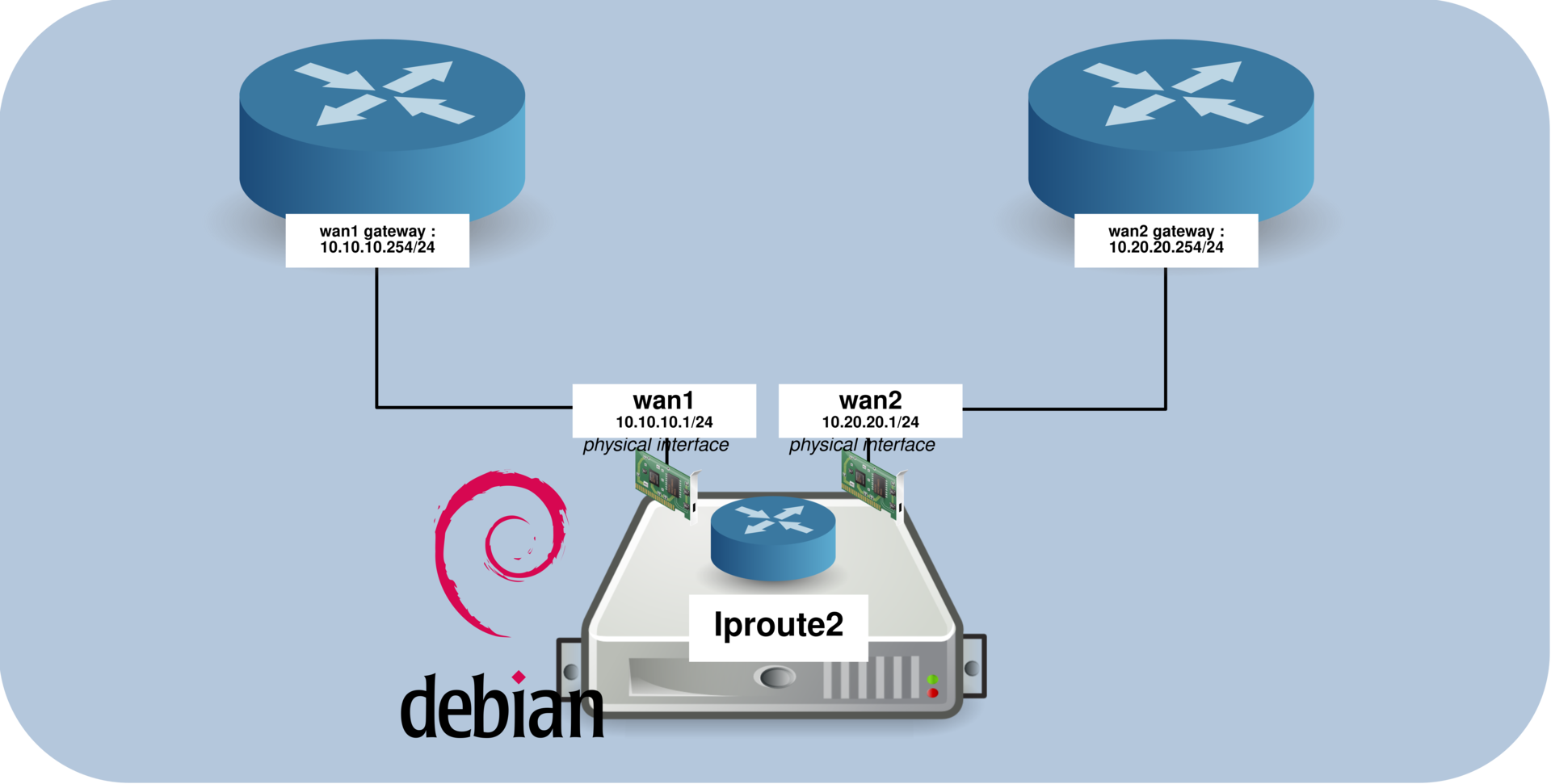

  • wan1: the primary WAN interface with the default route
  • wan2: the secondary WAN interface used for LAN2 traffic (via policy-based routing)
  • lan: the LAN interface without an IP address (configured later using ip addr add), which also runs the /usr/local/sbin/pbr.sh script at startup

# This file describes the network interfaces available on your system
# and how to activate them. For more information, see interfaces(5).

source /etc/network/interfaces.d/*

# The loopback network interface
auto lo
iface lo inet loopback

# The primary network interface
allow-hotplug wan1
iface wan1 inet static
        address 10.10.10.1
        netmask 255.255.255.0
        gateway 10.10.10.254

allow-hotplug wan2
iface wan2 inet static
        address 10.20.20.1
        netmask 255.255.255.0

allow-hotplug lan
iface lan inet manual
	up /usr/local/sbin/pbr.sh

nftables Configuration (NAT)

To allow the LAN networks to access the Internet through the wan1 and wan2 interfaces, we need to configure NAT (Network Address Translation) using nftables.

• Edit the /etc/nftables.conf file to define NAT rules:

#!/usr/sbin/nft -f

flush ruleset

table inet filter {
        chain input {
                type filter hook input priority 0; policy accept;
        }
        chain forward {
                type filter hook forward priority 0; policy accept;
        }
        chain output {
                type filter hook output priority 0; policy accept;
        }
}

table ip my_nat {
        chain my_masquerade {
                type nat hook postrouting priority 100; policy accept;
                ip daddr != { 10.0.0.0/8, 192.168.0.0/16 } oifname "wan1" masquerade comment "outgoing NAT on wan1"
                ip daddr != { 10.0.0.0/8, 192.168.0.0/16 } oifname "wan2" masquerade comment "outgoing NAT on wan2"
        }
}

• Enable and start the nftables service:

root@host:~# systemctl enable nftables.service

root@host:~# systemctl restart nftables.service

Make It Persistent (Startup Script)

• To make the configuration persistent across reboots, create the /usr/local/sbin/pbr.sh script:

#! /bin/sh
# --- VLAN configuration ---
ip link add link lan name vlan10 type vlan id 10
ip link add link lan name vlan20 type vlan id 20

ip link set vlan10 up
ip link set vlan20 up

ip addr add 192.168.1.254/24 dev vlan10
ip addr add 192.168.2.254/24 dev vlan20

# --- Enable IP forwarding ---
sysctl net.ipv4.ip_forward=1

# --- Routing table configuration ---
[ $(grep -q 200 /etc/iproute2/rt_tables; echo $?) -ne 0 ] && echo "200     table.wan2" >> /etc/iproute2/rt_tables

# --- Default route for wan2 table ---
ip route add default via 10.20.20.254 dev wan2 table table.wan2

# --- Policy-Based Routing rules ---
# Router's own traffic uses main table
ip rule add prio 160 from 192.168.20.254 lookup main

# LAN2 traffic uses wan2 table
ip rule add prio 161 from 192.168.20.0/24 table table.wan2

• Make the script executable:

root@host:~# chmod +x /usr/local/sbin/pbr.sh
