Elastic Stack 8 - Install and Configure Elasticsearch + Kibana on Debian Linux

Elasticsearch logo

A SIEM for Security information and event management is a security solution which centralizes the logs and events of numerous devices in a computing network in order to process them and generate alerts in the event that abnormal behavior is detected.

We will see here how to deploy Elastic Stack solution.

Elastic Stack Architecture

Elasticsearch is a real-time, distributed storage, search, and analytics engine.

Kibana is an open source analytics and visualization platform designed to work with Elasticsearch. Kibana will be used to search, view, and interact with data stored in Elasticsearch indices.

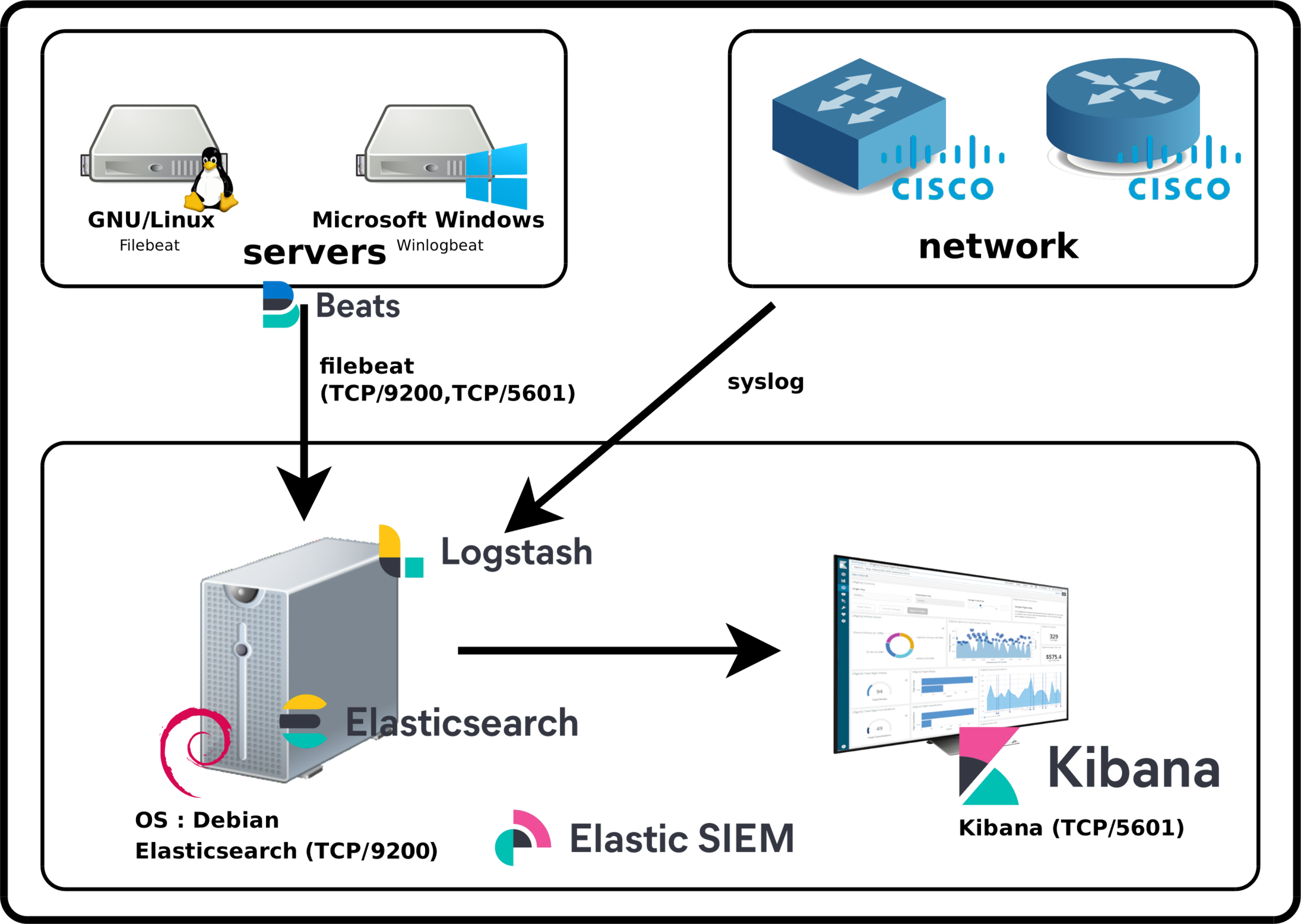

SIEM | Elasticsearch architecture

Notes

Versions

  • OS: Debian
  • Elasticsearch: 8

Links

Components

Main

  • Elasticsearch : Distributed, RESTful search and analytics.
  • Kibana : Visualize your data. Navigate the Stack.
  • Beats : Collect, parse, and ship in a lightweight fashion.

Others

  • Logstash : Ingest, transform, enrich, and output.
  • Filebeat : Real-time insight into log data.

Ports

  • ElastiSearch default port : http://IP_ADDRESS:9200
  • Kibana web access : http://IP_ADDRESS:5601
  • Logstash default port : 9600

Installing Elasticsearch (Debian Server)

Prerequisites

  • Install apt-transport-https and prerequisites packages:
root@host:~# apt update && apt-get install apt-transport-https gnupg curl wget
  • Import the Elasticsearch PGP key:
root@host:~# wget -qO - https://artifacts.elastic.co/GPG-KEY-elasticsearch | gpg --dearmor -o /usr/share/keyrings/elasticsearch-keyring.gpg
  • Save the repository definition:
root@host:~# echo "deb [signed-by=/usr/share/keyrings/elasticsearch-keyring.gpg] https://artifacts.elastic.co/packages/8.x/apt stable main" | tee /etc/apt/sources.list.d/elastic-8.x.list

Elasticsearch

  • Install Elasticsearch and note the superuser password:
root@host:~# apt update && apt-get install elasticsearch […] --------------------------- Security autoconfiguration information ------------------------------ Authentication and authorization are enabled. TLS for the transport and HTTP layers is enabled and configured. The generated password for the elastic built-in superuser is : elastic_password;) If this node should join an existing cluster, you can reconfigure this with '/usr/share/elasticsearch/bin/elasticsearch-reconfigure-node --enrollment-token <token-here> after creating an enrollment token on your existing cluster. You can complete the following actions at any time: Reset the password of the elastic built-in superuser with '/usr/share/elasticsearch/bin/elasticsearch-reset-password -u elastic'. Generate an enrollment token for Kibana instances with '/usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s kibana'. Generate an enrollment token for Elasticsearch nodes with '/usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s node'. -------------------------------------------------------------------------------------------------

Kibana

  • Install Kibana:
root@host:~# apt update && apt-get install kibana

Configuring

Elasticsearch

  • Edit /etc/elasticsearch/elasticsearch.yml to set the bind address to all:
network.host: 0.0.0.0
  • Start the elasticsearch service:
root@host:~# systemctl start elasticsearch.service
  • Check the elastic service is running:
root@host:~# curl --cacert /etc/elasticsearch/certs/http_ca.crt -u elastic https://localhost:9200 Enter host password for user 'elastic': elastic_password;) { "name" : "std", "cluster_name" : "elasticsearch", "cluster_uuid" : "StdgreaTBanDKphU4S0ceg", "version" : { "number" : "8.13.3", "build_flavor" : "default", "build_type" : "deb", "build_hash" : "ff17057114c2199c9c1bbecc727003a907c0db7a", "build_date" : "2024-04-29T22:05:16.051731935Z", "build_snapshot" : false, "lucene_version" : "9.10.0", "minimum_wire_compatibility_version" : "7.17.0", "minimum_index_compatibility_version" : "7.0.0" }, "tagline" : "You Know, for Search" }

Kibana

  • Edit /etc/kibana/kibana.yml to set the bind address to all:
server.host: "0.0.0.0" server.publicBaseUrl: "http://X.X.X.X:5601"
  • Start service:
root@host:~# systemctl start kibana.service
  • Create an enrollment token:
root@host:~# /usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s kibana eyJ2ZXIiOiI4LjEuMiIsImFkciI6WyIxOTIuMTY4LjEuNjY6OTIwMCJdLCJmZ3IiOiJmYzdiZmFmMjNmODEzN2M1NmY4YTg1NGMxNTdjMWFkYTNiZDdiOGM4NTE4YTZhNmI3wWNiYzBkNzc0ZTRjNzc1Iiwia2V5Ijoib1ZBTkVJQUIxWVNBT0BiUWVsUVc6cEU1WXF3U1FTUENjcFFaZUJvTGtKdyJ0
  • From Firefox open http://X.X.X.X:5601 and paste enrollment token then click to Configure Elastic:

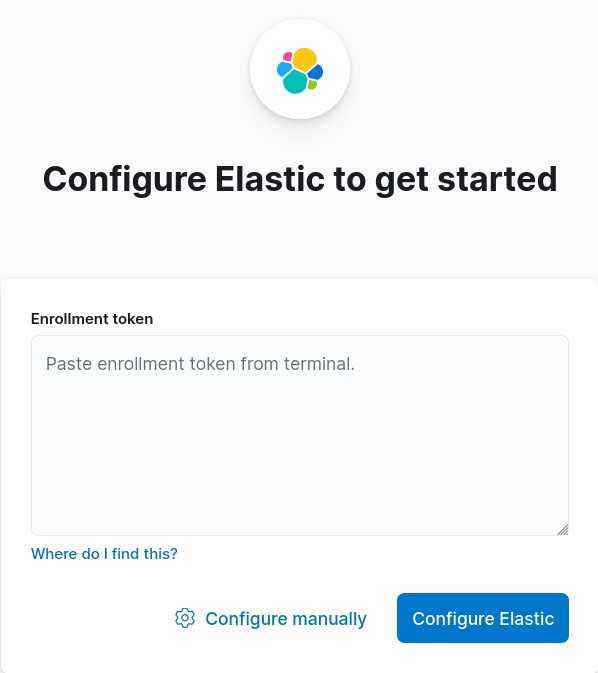

ElasticSearch | Kibana : Configure Elastic to get started
  • Generate Kibana verification code and paste it:

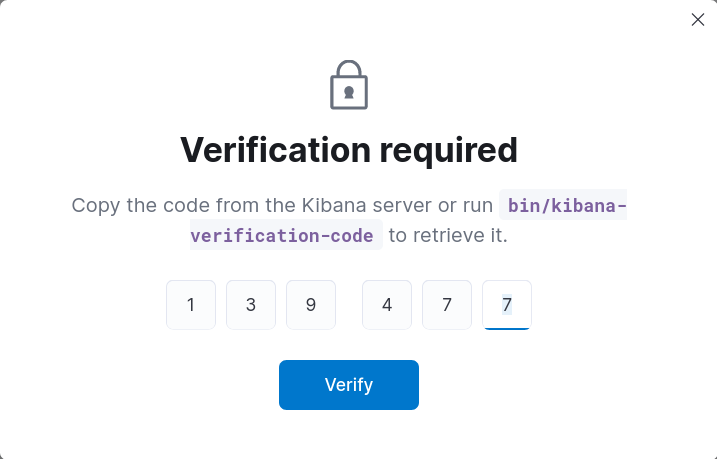

root@host:~# /usr/share/kibana/bin/kibana-verification-code Your verification code is: 139 477 ElasticSearch | Kibana : verification code
  • Now we can connect to Kibana with the elastic account:

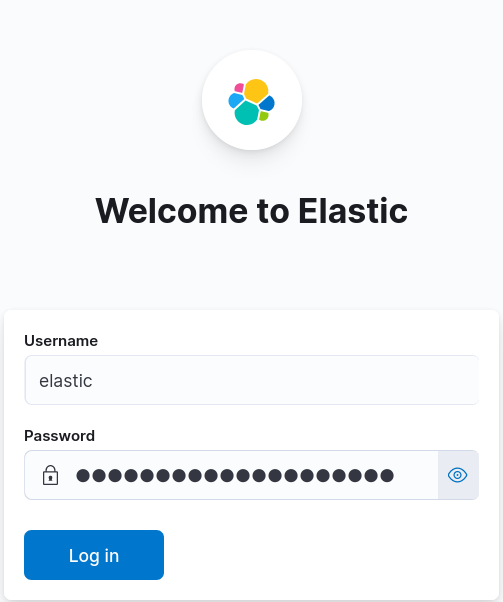

ElasticSearch | Kibana : Authentication Page

Securing Kibana

One of the big improvements in version 8 is that elasticsearch is automatically configured to encrypt its communications.

This is not the case with Kibana for which we connect using http. We will see here how to activate https connection.

  • Edit the /etc/kibana/node.options file and comment the following line to disable the OpenSSL Legacy Provider:
## enable OpenSSL 3 legacy provider #--openssl-legacy-provider
  • Run the kibana-encryption-keys script and copy the values below settings:
root@host:~# /usr/share/kibana/bin/kibana-encryption-keys generate ## Kibana Encryption Key Generation Utility The 'generate' command guides you through the process of setting encryption keys for: xpack.encryptedSavedObjects.encryptionKey Used to encrypt stored objects such as dashboards and visualizations https://www.elastic.co/guide/en/kibana/current/xpack-security-secure-saved-objects.html#xpack-security-secure-saved-objects xpack.reporting.encryptionKey Used to encrypt saved reports https://www.elastic.co/guide/en/kibana/current/reporting-settings-kb.html#general-reporting-settings xpack.security.encryptionKey Used to encrypt session information https://www.elastic.co/guide/en/kibana/current/security-settings-kb.html#security-session-and-cookie-settings Already defined settings are ignored and can be regenerated using the --force flag. Check the documentation links for instructions on how to rotate encryption keys. Definitions should be set in the kibana.yml used configure Kibana. Settings: xpack.encryptedSavedObjects.encryptionKey: caeb7879368e3dd66d7302f6810daec1 xpack.reporting.encryptionKey: c1c89f500966ac710f7fa5eaf2939976 xpack.security.encryptionKey: e1458d710ffb321e4a4f4eb792c78b2b
  • Put the previous copied informations to /etc/kibana/kibana.yml:
[…] xpack.encryptedSavedObjects.encryptionKey: caeb7879368e3dd66d7302f6810daec1 xpack.reporting.encryptionKey: c1c89f500966ac710f7fa5eaf2939976 xpack.security.encryptionKey: e1458d710ffb321e4a4f4eb792c78b2b
  • Get the secure password of the http.p12 container:
root@host:~# /usr/share/elasticsearch/bin/elasticsearch-keystore show xpack.security.http.ssl.keystore.secure_password 592l_UJGSXmliJIvuokDab
  • Extract necessary certificates to /etc/kibana/:
root@host:~# cd /etc/kibana/ root@host:~# openssl pkcs12 -in /etc/elasticsearch/certs/http.p12 -out server.crt -clcerts -nokeys Enter Import Password:592l_UJGSXmliJIvuokDab root@host:~# openssl pkcs12 -in /etc/elasticsearch/certs/http.p12 -out server.key -nocerts -nodes Enter Import Password:592l_UJGSXmliJIvuokDab root@host:~# chown root:kibana /etc/kibana/server.* root@host:~# chmod g+r /etc/kibana/server.*
  • Edit the /etc/kibana/kibana.yml file:
server.ssl.enabled: true server.ssl.certificate: /etc/kibana/server.crt server.ssl.key: /etc/kibana/server.key
  • Restart the kibana service:
root@host:~# systemctl restart kibana.service

Wait some seconds and connect to kibana at https://X.X.X.X:5601

Autostart

To make our Elasticsearch and Kibana services start at boot, we need to do some modifications.

Elasticsearch

  • Set Elasticsearch service start when the server starts:
root@host:~# systemctl enable elasticsearch.service

Kibana

  • Set Kibana service start when the server starts:
root@host:~# systemctl enable kibana.service

Log Files

  • Elasticsearch:
root@host:~# tail /var/log/elasticsearch/elasticsearch.log
  • Kibana:
root@host:~# tail /var/log/kibana/kibana.log
