Plugin Nagios pour les NAS Synology

Mise à jour le 08 sept. 2020

Voici un plugin Nagios en Bourne shell qui peut s'exécuter directement sur les NAS Synology. Il s'appuit sur les scripts développés par Jur Groen et Nicolas Ordonez.

Il vérifiera les éléments suivants :

État sytème (Power, Fans)
État disques
État du RAID
Maj DSM
Utilisation des disques

Environnement

DSM : 5, 6

Instructions

Activer SNMPv3

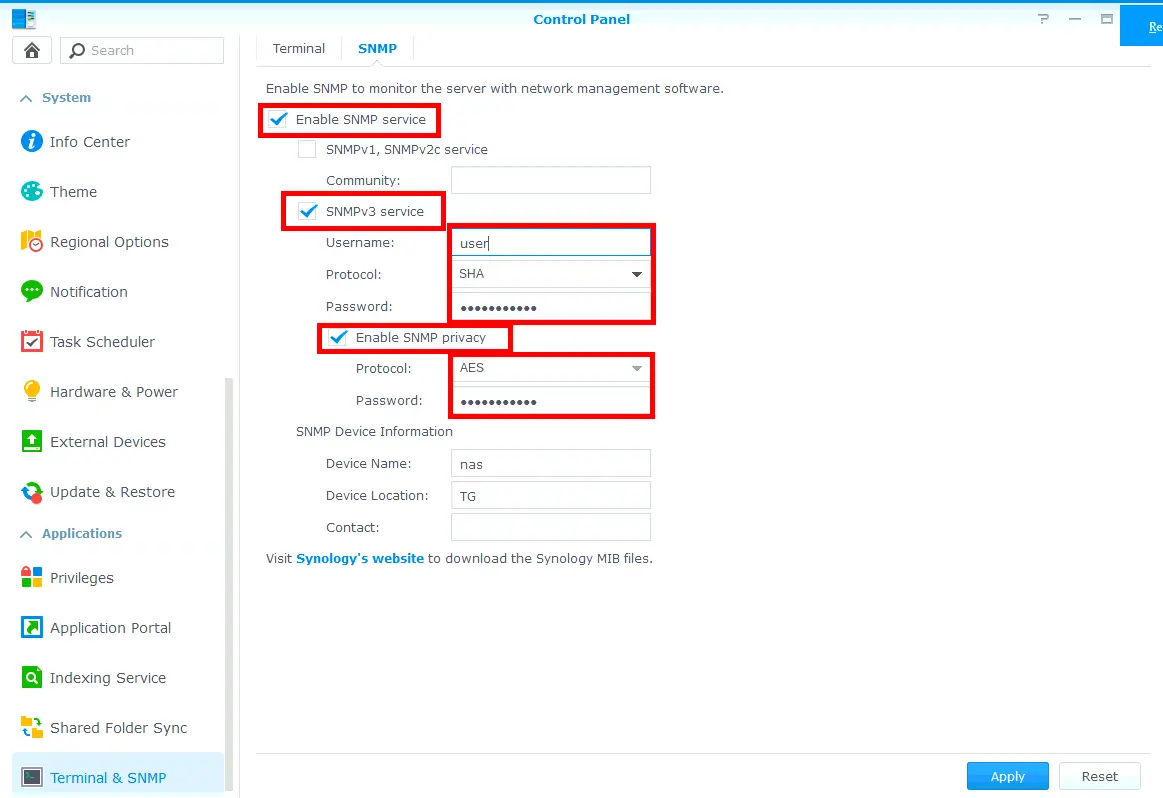

La première chose à faire est d'activer SNMPv3 depuis l'interface Web (on définiera le même mot de passe pour les protocoles SHA et AES) :

Le plugin peut être utilisé à distance (donc depuis le NAS Synology) ou localement (donc depuis le serveur Nagios).
⚠️ À savoir que les informations sur le niveau d'utilisation des disques ne sera visible que depuis la méthode distante.

Depuis le serveur Nagios, installer sudo et les outils snmp :

root@host:~# apt install sudo snmp

Méthode Locale

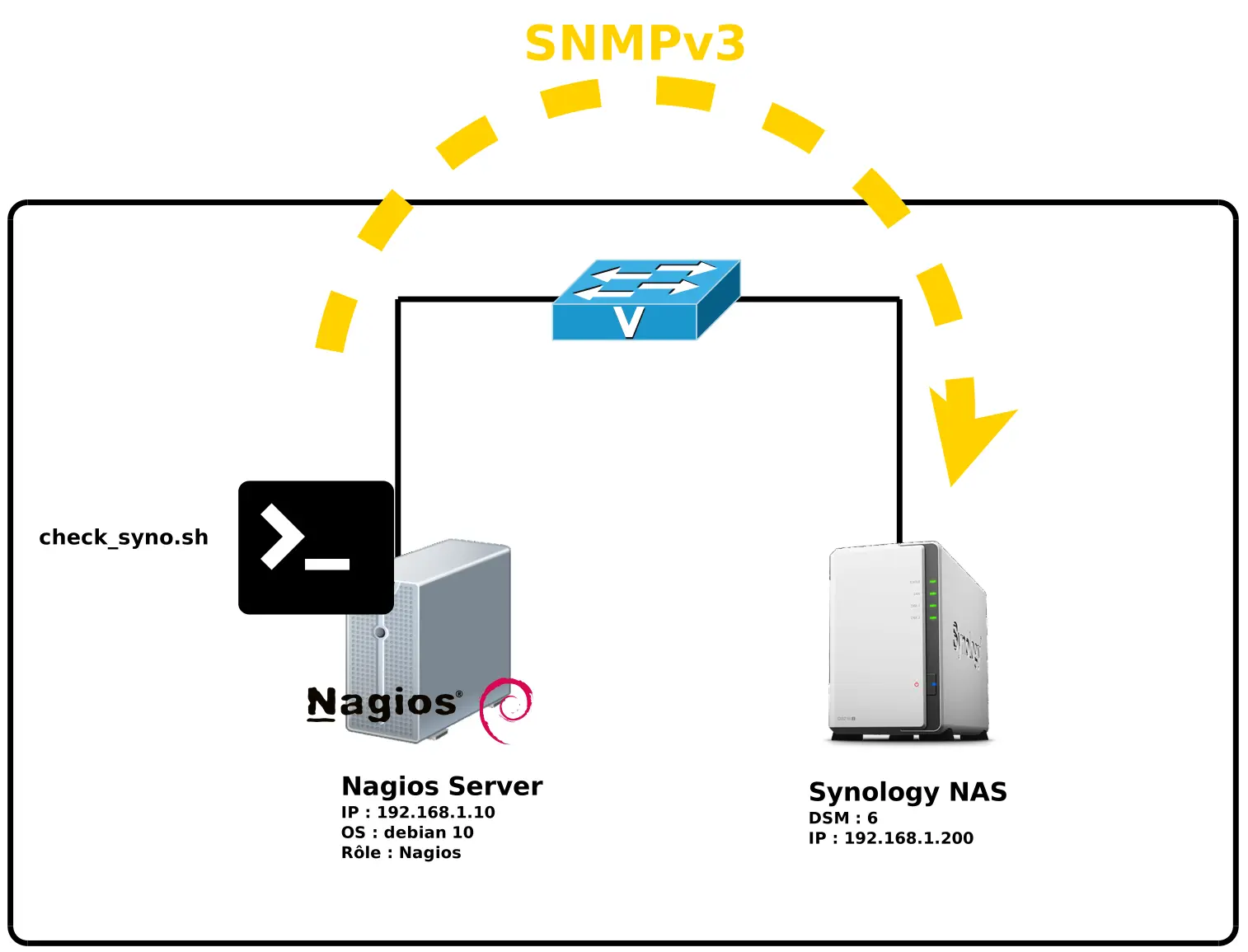

Ici, le plugin est exécuté depuis le serveur Nagios et des requètes SNMPv3 seront envoyées vers le NAS.

On ajoute les droits d'execution au plugin

root@host:~# chmod +x ./check_syno.sh

On exécute le plugin en tant qu'utilisateur Nagios pour valider que tout fonctionne

root@host:~# sudo -u nagios ./check_syno.sh -u user -p PassW0RD -h 192.168.1.200

Sortie

OK - The NAS DS218j - SN : 254262N214800 - DSM : DSM 6.2-25426 is fine
NAS temperature is 40°C - Fan Status : OK - CPU Fan Status : OK - Power Status : OK - System Status : OK
The Hard Drive 2 model HD204UI is functioning normally
The Hard Drive 1 model WD20EARX-00PASB0 is functioning normally
The RAID Storage Pool 1 is fine The RAID Volume 2 is fine

Méthode distante

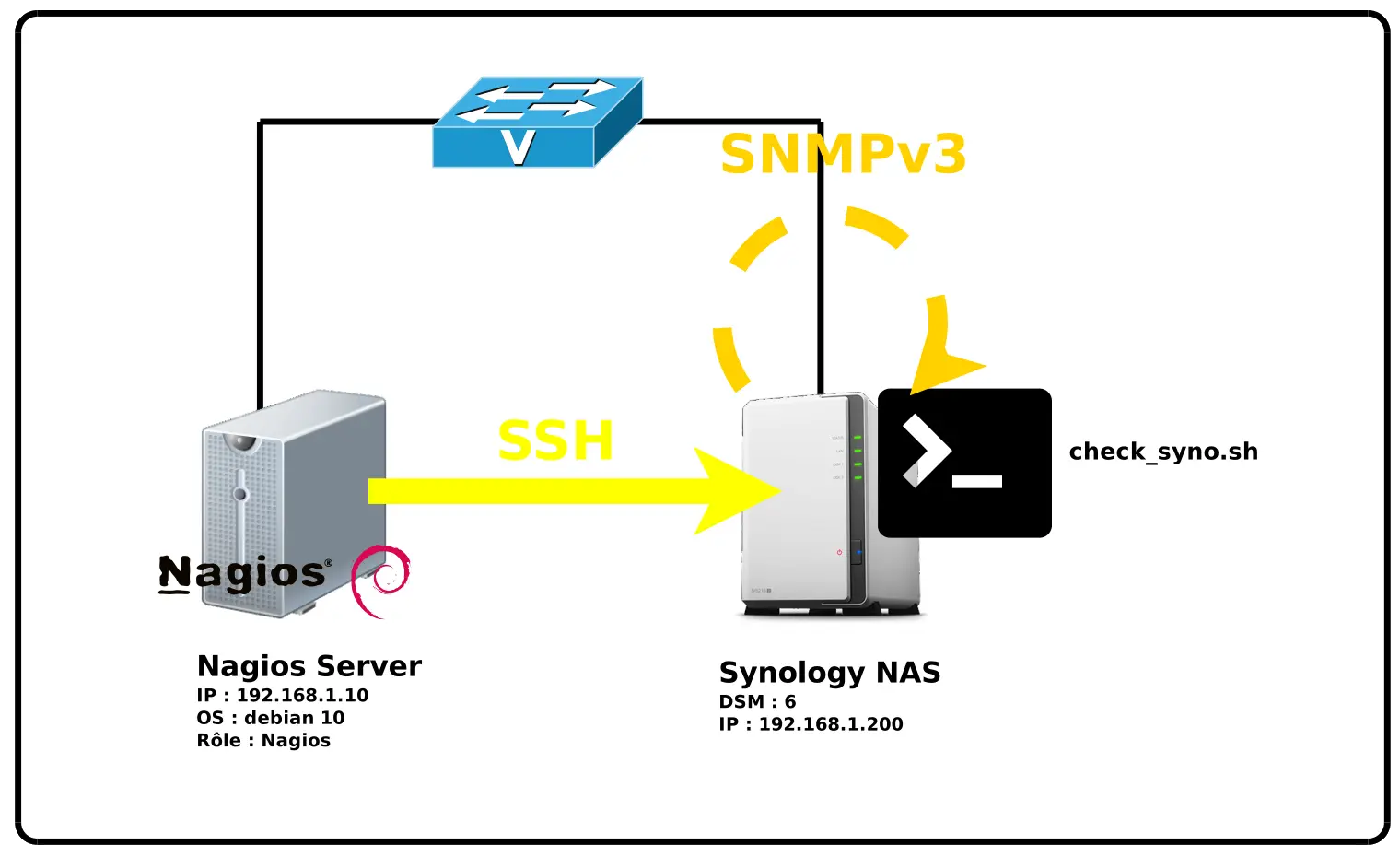

Cette fois, le plugin est lancé depuis le serveur Nagios via ssh et s'exécutera sur le NAS Synology. Dans ce mode, les informations sur l'utilisation disques sera disponible.

Création d'un nouvel utilisateur depuis l'interface Web

L'utilisateur root n'étant pas autorisé à se connecter via ssh nous allons avoir besoin d'ajouter un nouvel utilisateur avec les droits administrateurs :

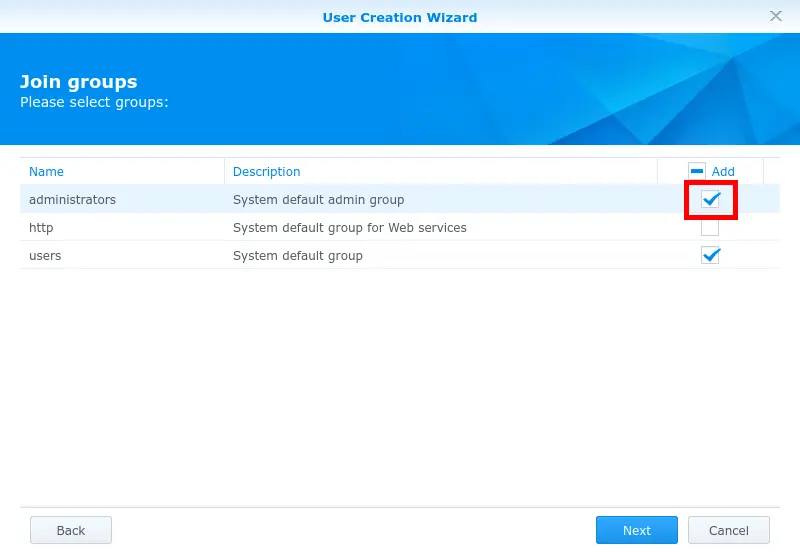

Synology NAS Interface Web creation Wizard

Activer l'authentification avec clé ssh

Toujours depuis le NAS Synology, éditer le fichier /etc/ssh/sshd_config et décommenter les lignes suivantes :

SAAuthentication yes
PubkeyAuthentication yes
AuthorizedKeysFile .ssh/authorized_keys

Redémarrer le service sshd :

synoservicectl --restart sshd

Configurer les droits des fichiers et dossiers :

chmod 0711 ~
chmod 0711 ~/.ssh
chmod 0600 ~/.ssh/authorized_keys

Maintenant, générer une paire de clés rsa depuis le serveur Nagios pour l'utilisateur nagios :

root@host:~# sudo -u nagios ssh-keygen -t rsa

Toujours depuis le serveur Nagios, exporter la clé publique ssh vers le NAS Synology :

root@host:~# sudo -u nagios cat /var/lib/nagios/.ssh/id_rsa.pub | ssh SSH_USER@192.168.1.200 'cat >> .ssh/authorized_keys'

Copier le plugin vers le NAS :

user@host:~$ scp check_syno.sh SSH_USER@192.168.1.200:/usr/syno/sbin/

Et exécuter la commande suivante :

root@host:~# sudo -u nagios ssh -l SSH_USER 192.168.1.200 /usr/syno/sbin/check_syno.sh -h 127.0.0.1 -u SNMP_USER -p SNMP_PASSWORD -w 80 -c 90

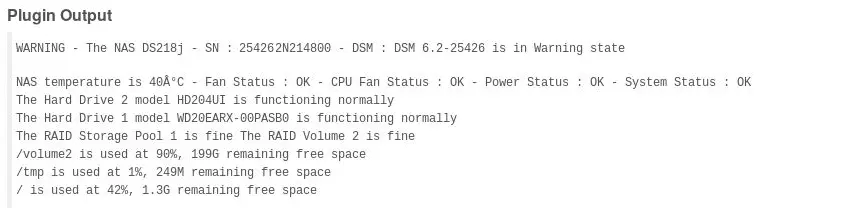

Sortie

OK - The NAS DS218j - SN : 254262N214800 - DSM : DSM 6.2-25426 is fine
NAS temperature is 40°C - Fan Status : OK - CPU Fan Status : OK - Power Status : OK - System Status : OK
The Hard Drive 2 model HD204UI is functioning normally
The Hard Drive 1 model WD20EARX-00PASB0 is functioning normally
The RAID Storage Pool 1 is fine The RAID Volume 2 is fine
/volume2 is used at 49%, 947G remaining free space
/tmp is used at 1%, 249M remaining free space
/ is used at 42%, 1.3G remaining free space

Pour plus de détails concernant l'authentification par clé ssh avec les NAS Synology vous pouvez lire l'article suivant silica.io.

check_syno.sh

#! /bin/bash
# check_snmp_synology for nagios version 1.4
# 30.04.2013  Nicolas Ordonez, Switzerland
# 03.10.2014  Jur Groen, Syso IT Services, The Netherlands
# 06.11.2014  shebangthedolphins.net
# 05.12.2014  shebangthedolphins.net add disk usage check
# 17.09.2020  shebangthedolphins.net bugs correction, DSM 6 compatibility, improve snmpv3 security (SHA and AES)
#---------------------------------------------------
# this plugin checks the health of your Synology NAS
# - System status (Power, Fans)
# - Disks status
# - RAID status
# - DSM update status
#
# this plugin now makes use of SNMP V3 for enhanced security
# Tested with DSM 6.0
#---------------------------------------------------
# Based on http://download.synology.com/download/ds/userguide/Synology_DiskStation_MIB_Guide_enu_20110725.pdf
#---------------------------------------------------

#Variables definition
## NAGIOS returns
CRITICAL=2
WARNING=1
OK=0
RETURN=0                #everything's fine, by default

## If arguments found
option_found=0

#get the number of partitions
NB_part=$(df -h | grep "/" | grep -v "\(\/tmpfs\|\/shm\|\/sys\|\/run\|\/dev$\|\/rootfs\)" | wc -l)

##OIDs
OID_syno="1.3.6.1.4.1.6574"
OID_model="1.3.6.1.4.1.6574.1.5.1.0"
OID_serialNumber="1.3.6.1.4.1.6574.1.5.2.0"
OID_DSMVersion="1.3.6.1.4.1.6574.1.5.3.0"
OID_upgradeAvailable="1.3.6.1.4.1.6574.1.5.4.0"
OID_systemStatus="1.3.6.1.4.1.6574.1.1.0"
OID_powerStatus="1.3.6.1.4.1.6574.1.3.0"
OID_systemFanStatus="1.3.6.1.4.1.6574.1.4.1.0"
OID_CPUFanStatus="1.3.6.1.4.1.6574.1.4.2.0"
OID_temp="1.3.6.1.4.1.6574.1.2.0"

OID_disk=""
OID_diskID="1.3.6.1.4.1.6574.2.1.1.2"
OID_diskModel="1.3.6.1.4.1.6574.2.1.1.3"
OID_diskStatus="1.3.6.1.4.1.6574.2.1.1.5"
OID_diskTemp="1.3.6.1.4.1.6574.2.1.1.6"

OID_RAID=""
OID_RAIDName="1.3.6.1.4.1.6574.3.1.1.2"
OID_RAIDStatus="1.3.6.1.4.1.6574.3.1.1.3"

#Functions
FunctionDiskSpace()
{
	if [ "$HOSTNAME" == "127.0.0.1" ]; then #check disk usage only if executed on the synology nas
	    for i in $(seq 1 "$NB_part"); do
		PARTITION=$(df -h | grep "/" | tr -s " " | grep -v "\(\/tmpfs\|\/shm\|\/sys\|\/run\|\/dev$\|\/rootfs\)" | head -n "$i" | tail -n 1 | grep "/" | cut -d " " -f 6)
		UTI=$(df -h | grep "/" | tr -s " " | grep -v "\(\/tmpfs\|\/shm\|\/sys\|\/run\|\/dev$\|\/rootfs\)" | head -n "$i" | tail -n 1 | grep "/" | cut -d " " -f 5)
		DISPO=$(df -h | grep "/" | tr -s " " | grep -v "\(\/tmpfs\|\/shm\|\/sys\|\/run\|\/dev$\|\/rootfs\)" | head -n "$i" | tail -n 1 | grep "/" | cut -d " " -f 4)
		SORTIE="$(echo ""$PARTITION" is used at "$UTI", "$DISPO" remaining free space") \n"$SORTIE""
		TEST=$(echo "$UTI" | sed 's/%//')
		if [ $TEST -gt "$WARNING_SPACE" ]; then
		    RETURN="$WARNING"
		    if [ "$TEST" -gt "$CRITICAL_SPACE" ]; then
			RETURN="$CRITICAL"
		    fi
		fi
	    done
	    if [ "$1" == "Output" ]; then
		echo -e "$SORTIE"
	    fi
	    SORTIE=""
	fi
}

usage()
{
        echo "usage: ./check_snmp_synology -u [snmp username] -p [snmp password] -h [hostname] -w [warning occuped space in %] -c [max occuped space in %]"
        echo ""
        exit 3
}

while getopts u:p:h:c:w: OPTNAME; do
        case "$OPTNAME" in
        u)
                SNMPUSERNAME="$OPTARG"
                option_found=1
                ;;
        p)
                SNMPPASSWORD="$OPTARG"
                option_found=1
                ;;

        h)
                HOSTNAME="$OPTARG"
                option_found=1
                ;;
        w)
                WARNING_SPACE="$OPTARG"
                option_found=1
                ;;
        c)
                CRITICAL_SPACE="$OPTARG"
                option_found=1
                ;;
        *)
                usage
                ;;
        esac
done

# Script beginning :
if [ "$option_found" -eq "0" ] || [ "$HOSTNAME" == "" ] ; then
        usage
else
        # DiskSpace function usage but without print anything
        FunctionDiskSpace NoOutput

	nbDISK=$(snmpwalk -OQne -v 3 -t 10 -l authNoPriv -u $SNMPUSERNAME -a SHA -A "$SNMPPASSWORD" -x AES -X "$SNMPPASSWORD" $HOSTNAME .1.3.6.1.4.1.6574.2.1.1.3 2>/dev/null|wc -l)
        #if SNMP failed, exit with error
        if [ "$?" != "0" ] ; then
                echo "CRITICAL - Problem with SNMP request"
                exit "$CRITICAL"
        fi

	nbRAID=$(snmpwalk -OQne -v 3 -t 10 -l authNoPriv -u $SNMPUSERNAME -a SHA -A "$SNMPPASSWORD" -x AES -X "$SNMPPASSWORD" $HOSTNAME .1.3.6.1.4.1.6574.3.1.1.2 2>/dev/null|wc -l)

        for i in $(seq 1 $nbDISK);
        do
                OID_DISK="$OID_disk $OID_diskID.$(($i-1)) $OID_diskModel.$(($i-1)) $OID_diskStatus.$(($i-1)) $OID_diskTemp.$(($i-1)) "
        done
        for i in $(seq 1 $nbRAID);
        do
                OID_RAID="$OID_RAID $OID_RAIDName.$(($i-1)) $OID_RAIDStatus.$(($i-1))"
        done

        #MODEL
        temp=$(snmpwalk -OQne -t 10 -v 3 -l authNoPriv -u "$SNMPUSERNAME" -a SHA -A "$SNMPPASSWORD" -x AES -X "$SNMPPASSWORD" "$HOSTNAME" "$OID_model" 2>/dev/null)
        model=$(echo $temp | grep $OID_model | cut -d " " -f3 | sed "s/\"//g")
        #echo $model

        #serialNumber
        temp=$(snmpwalk -OQne -t 10 -v 3 -l authNoPriv -u "$SNMPUSERNAME" -a SHA -A "$SNMPPASSWORD" -x AES -X "$SNMPPASSWORD" "$HOSTNAME" "$OID_serialNumber" 2>/dev/null)
        serialNumber=$(echo $temp | grep $OID_serialNumber | cut -d " " -f3 | sed "s/\"//g")
        #echo $serialNumber

        #OID_upgradeAvailable
        temp=$(snmpwalk -OQne -t 10 -v 3 -l authNoPriv -u "$SNMPUSERNAME" -a SHA -A "$SNMPPASSWORD" -x AES -X "$SNMPPASSWORD" "$HOSTNAME" "$OID_upgradeAvailable" 2>/dev/null)

        #OID_DSMVersion
        temp=$(snmpwalk -OQne -t 10 -v 3 -l authNoPriv -u "$SNMPUSERNAME" -a SHA -A "$SNMPPASSWORD" -x AES -X "$SNMPPASSWORD" "$HOSTNAME" "$OID_DSMVersion" 2>/dev/null)
        DSMVersion=$(echo $temp | grep $OID_DSMVersion | cut -d "\"" -f2)
        #echo "$DSMVersion"

        #OID_systemStatus
        temp=$(snmpwalk -OQne -t 10 -v 3 -l authNoPriv -u "$SNMPUSERNAME" -a SHA -A "$SNMPPASSWORD" -x AES -X "$SNMPPASSWORD" "$HOSTNAME" "$OID_systemStatus" 2>/dev/null)
        systemStatus=$(echo $temp | grep $OID_systemStatus | cut -d " " -f3 | sed "s/\"//g")
        #echo $systemStatus

        #OID_powerStatus
        temp=$(snmpwalk -OQne -t 10 -v 3 -l authNoPriv -u "$SNMPUSERNAME" -a SHA -A "$SNMPPASSWORD" -x AES -X "$SNMPPASSWORD" "$HOSTNAME" "$OID_powerStatus" 2>/dev/null)
        powerStatus=$(echo $temp | grep $OID_powerStatus | cut -d " " -f3 | sed "s/\"//g")
        #echo $powerStatus

        #OID_systemFanStatus
        temp=$(snmpwalk -OQne -t 10 -v 3 -l authNoPriv -u "$SNMPUSERNAME" -a SHA -A "$SNMPPASSWORD" -x AES -X "$SNMPPASSWORD" "$HOSTNAME" "$OID_systemFanStatus" 2>/dev/null)
        systemFanStatus=$(echo $temp | grep $OID_systemFanStatus | cut -d " " -f3 | sed "s/\"//g")
        #echo $systemFanStatus

        #OID_CPUFanStatus
        temp=$(snmpwalk -OQne -t 10 -v 3 -l authNoPriv -u "$SNMPUSERNAME" -a SHA -A "$SNMPPASSWORD" -x AES -X "$SNMPPASSWORD" "$HOSTNAME" "$OID_CPUFanStatus" 2>/dev/null)
        CPUFanStatus=$(echo $temp | grep $OID_CPUFanStatus | cut -d " " -f3 | sed "s/\"//g")
        #echo $CPUFanStatus

        #OID_temp
        temp=$(snmpwalk -OQne -t 10 -v 3 -l authNoPriv -u "$SNMPUSERNAME" -a SHA -A "$SNMPPASSWORD" -x AES -X "$SNMPPASSWORD" "$HOSTNAME" "$OID_temp" 2>/dev/null)
        TEMP=$(echo "$temp" | grep "$OID_temp" | cut -d " " -f3 | sed "s/\"//g")
        #echo "$TEMP"

        #Disks state
        for i in $(seq 1 "$nbDISK")
        do
                temp01=$(snmpwalk -OQne -t 10 -v 3 -l authNoPriv -u "$SNMPUSERNAME" -a SHA -A "$SNMPPASSWORD" -x AES -X "$SNMPPASSWORD" "$HOSTNAME" "$OID_diskStatus.$(($i-1))" 2>/dev/null)
                temp02=$(snmpwalk -OQne -t 10 -v 3 -l authNoPriv -u "$SNMPUSERNAME" -a SHA -A "$SNMPPASSWORD" -x AES -X "$SNMPPASSWORD" "$HOSTNAME" "$OID_diskModel.$(($i-1))" 2>/dev/null)
                temp03=$(snmpwalk -OQne -t 10 -v 3 -l authNoPriv -u "$SNMPUSERNAME" -a SHA -A "$SNMPPASSWORD" -x AES -X "$SNMPPASSWORD" "$HOSTNAME" "$OID_diskID.$(($i-1))" 2>/dev/null)
                temp04=$(snmpwalk -OQne -t 10 -v 3 -l authNoPriv -u "$SNMPUSERNAME" -a SHA -A "$SNMPPASSWORD" -x AES -X "$SNMPPASSWORD" "$HOSTNAME" "$OID_diskTemp.$(($i-1))" 2>/dev/null)

                status=$(echo "$temp01" | grep "$OID_disk" | cut -d " " -f3)
                diskmodel=$(echo "$temp02" | grep "$OID_disk" | cut -d "\"" -f2 | sed 's/\s//g')
                ID=$(echo "$temp03" | grep "$OID_disk" | cut -d "\"" -f2)
                temp=$(echo "$temp04" | grep "$OID_disk" | cut -d " " -f3)
                if [ "$status" -eq "5" ]; then
                        disques="$(echo "The Hard "$ID" model "$diskmodel" is damaged")\\n"$disques""
                        RETURN="$CRITICAL"
                elif [ "$status" -eq "4" ]; then
                        disques="$(echo "The Hard "$ID" model "$diskmodel" has partitions damaged")\\n"$disques""
                        RETURN="$CRITICAL"
                elif [ "$status" -eq "3" ]; then
                        disques="$(echo "The Hard "$ID" model "$diskmodel" is not partitioned")\\n"$disques""
                        RETURN="$WARNING"
                elif [ "$status" -eq "2" ]; then
                        disques="$(echo "The Hard "$ID" model "$diskmodel" has system partitions but no data")\\n"$disques""
                        RETURN="$WARNING"
                elif [ "$status" -eq "1" ]; then
                        disques="$(echo "The Hard "$ID" model "$diskmodel" is functioning normally")\\n"$disques""
                        #RETURN=$(echo "$OK")
                else
                        disques="$(echo "The Hard "$ID" model "$diskmodel" is in an unknown state")\\n"$disques""
                        RETURN="$WARNING"
                fi
        done

        #RAID State
        for i in $(seq 1 "$nbRAID")
        do
                temp01=$(snmpwalk -OQne -t 10 -v 3 -l authNoPriv -u "$SNMPUSERNAME" -a SHA -A "$SNMPPASSWORD" -x AES -X "$SNMPPASSWORD" "$HOSTNAME" "$OID_RAIDName.$(($i-1))" 2>/dev/null)
                temp02=$(snmpwalk -OQne -t 10 -v 3 -l authNoPriv -u "$SNMPUSERNAME" -a SHA -A "$SNMPPASSWORD" -x AES -X "$SNMPPASSWORD" "$HOSTNAME" "$OID_RAIDStatus.$(($i-1))" 2>/dev/null)
                Volume=$(echo "$temp01" | grep "$OID_disk" | cut -d "\"" -f2)
                Statut=$(echo "$temp02" | grep "$OID_disk" | cut -d " " -f3)
                if [ "$Statut" -eq "11" ]; then
                        raids="$(echo "The RAID "$Volume" is degraded") "$raids""
                        RETURN="$CRITICAL"
                elif [ "$Statut" -eq "12" ]; then
                        raids="$(echo "The RAID "$Volume" has crashed") "$raids""
                        RETURN="$CRITICAL"
                elif [ "$Statut" -eq "1" ]; then
                        raids="$(echo "The RAID "$Volume" is fine") "$raids""
                else
                        raids="$(echo "The RAID "$Volume" is in an unknown state") "$raids""
                        RETURN="$WARNING"
                fi
        done

        # Nagios States
        if [ "$RETURN" -eq "2" ] || [ "$systemFanStatus" -eq "2" ] || [ "$CPUFanStatus" -eq "2" ] || [ "$powerStatus" -eq "2" ] || [ "$systemStatus" -eq "2" ]; then
                echo -e "CRITICAL - The NAS "$model" - SN : "$serialNumber" - DSM : "$DSMVersion" has a problem"
                echo -e "NAS temperature is "$TEMP"°C - Fan Status : "$systemFanStatus" - CPU Fan Status : "$CPUFanStatus" - Power Status : "$powerStatus" - System Status : "$systemStatus" " | sed 's/ 1 / OK
                for i in "$disques"; do
                        echo -e "$i" | sed '/^$/d'
                done
                for i in "$raids"; do
                        echo -e "$i" | sed '/^$/d'
                done
                FunctionDiskSpace Output

                exit "$CRITICAL"
        fi
        if [ "$RETURN" -eq "1" ]; then
                echo -e "WARNING - The NAS "$model" - SN : "$serialNumber" - DSM : "$DSMVersion" is in Warning state"
                echo -e "NAS temperature is "$TEMP"°C - Fan Status : "$systemFanStatus" - CPU Fan Status : "$CPUFanStatus" - Power Status : "$powerStatus" - System Status : "$systemStatus" " | sed 's/ 1 / OK
                for i in "$disques"; do
                        echo -e "$i" | sed '/^$/d'
                done
                for i in "$raids"; do
                        echo -e "$i" | sed '/^$/d'
                done
                FunctionDiskSpace Output

                exit "$WARNING"
        fi
        if [ "$RETURN" -eq "0" ]; then
		echo -e "OK - The NAS "$model" - SN : "$serialNumber" - DSM : "$DSMVersion" is fine"
		echo -e "NAS temperature is "$TEMP"°C - Fan Status : "$systemFanStatus" - CPU Fan Status : "$CPUFanStatus" - Power Status : "$powerStatus" - System Status : "$systemStatus" " | sed 's/ 1 / OK /g' | sed 's/ 2 / FAILED /g'
		for i in "$disques"; do
			echo -e "$i" | sed '/^$/d'
		done
		for i in "$raids"; do
			echo -e "$i" | sed '/^$/d'
		done
		FunctionDiskSpace Output

		exit "$OK"
	fi
	echo -e "CRITICAL - The NAS "$model" - SN : "$serialNumber" - DSM : "$DSMVersion" is in an indeterminate State"
	exit "$CRITICAL"
fi

Configuration Nagios

Je n'utilise plus Nagios mais la configuration doit ressembler à ça.

command.cfg

define command {
    command_name   check_syno_local
    command_line    /usr/local/sbin/check_syno.sh -u $ARG1$ -p $ARG2$ -h $ARG3$
}
define command {
    command_name   check_syno_remote
    command_line    ssh -l $ARG1$ $ARG2$ /usr/syno/sbin/check_syno.sh -h 127.0.0.1 -u $ARG3$ -p $ARG4$ -w 80 -c 90
}

service.cfg

define service{
    use                     nassynology-service
    host_name               NAS Synology
    servicegroups           nas-synology
    service_description     Backup Local NAS
    check_command           check_syno_local!SNMP_USER PassW0RD 192.168.1.200
}
define service{
    use                     nassynology-service
    host_name               NAS Synology
    servicegroups           nas-synology
    service_description     Backup Remote NAS
    check_command           check_syno_remote!SSH_USER 192.168.1.200 SNMP_USER PassW0RD
}

Output

Download : check_syno.sh
Nagios Exchange : https://exchange.nagios.org/
