How To download and process OVH daily raw logs to extract useful information

Last updated: Sept 8, 2021

Intro

I have a Web Hosting plans at OVH. I'm not that happy with the Website visit statistics tools. Urchin is deprecated, OVHcloud Web Statistics is still young and Awstats which I found great but it only show daily stats.

This is the reason why I decided to find a way to download logs and to treat them manually.

Configuration

OS : GNU/Linux and Windows 10
wget : 1.21

Create dedicated log user account

First thing to do is to create a dedicated log user from the OVHCloud Web Control Panel.

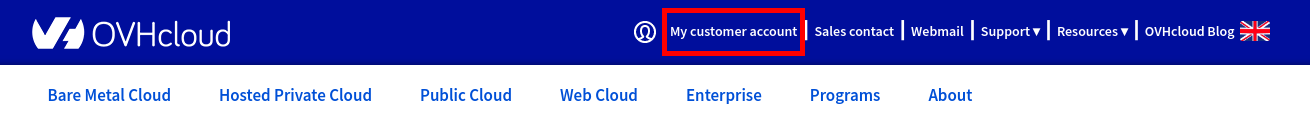

Go to https://www.ovh.com/ and click My customer account :

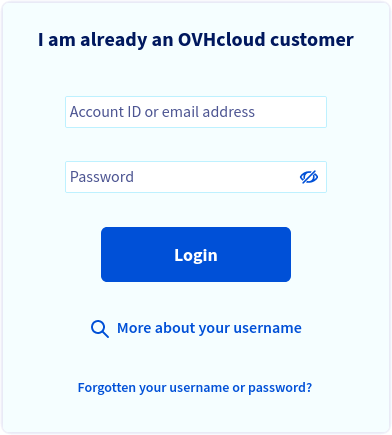

Or directly to https://www.ovh.com/auth/ and log in with your credentials :

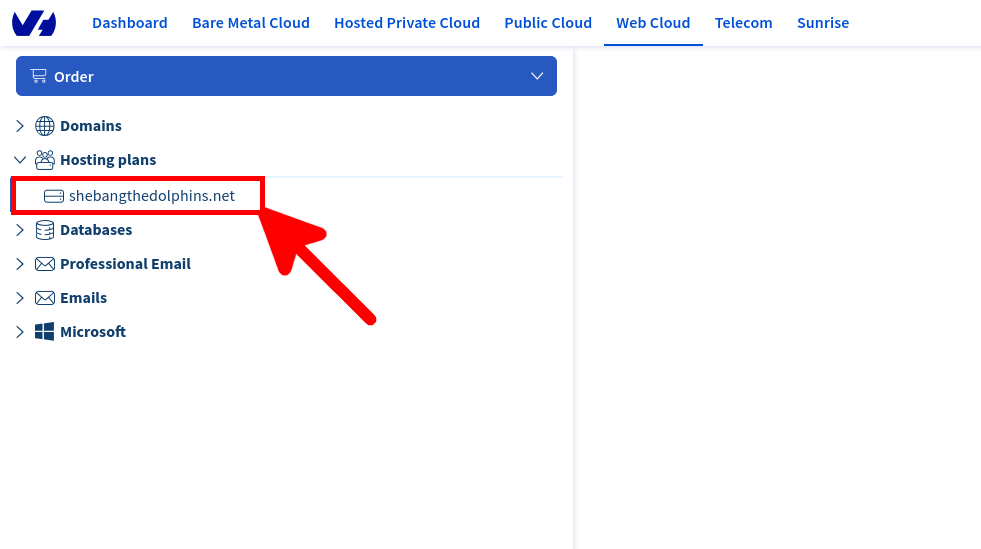

From the OVHCloud Web Control Panel click on your hosted plan :

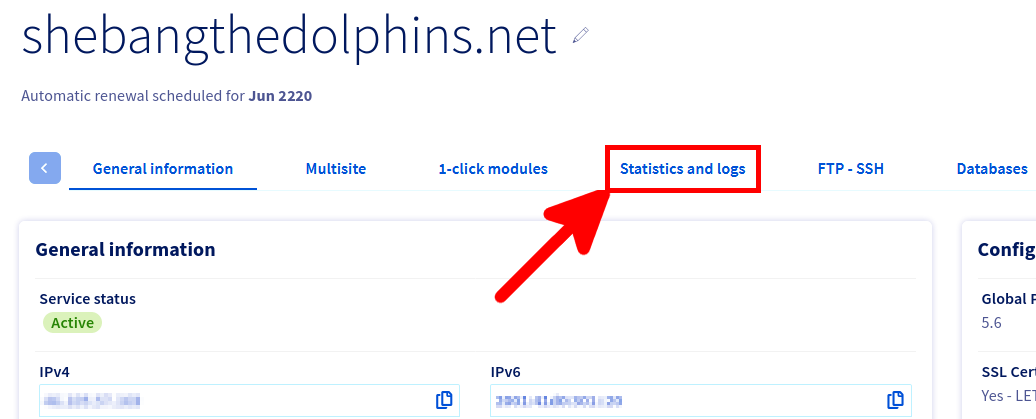

From the Ribbon Menu click More+ then Statistics and logs :

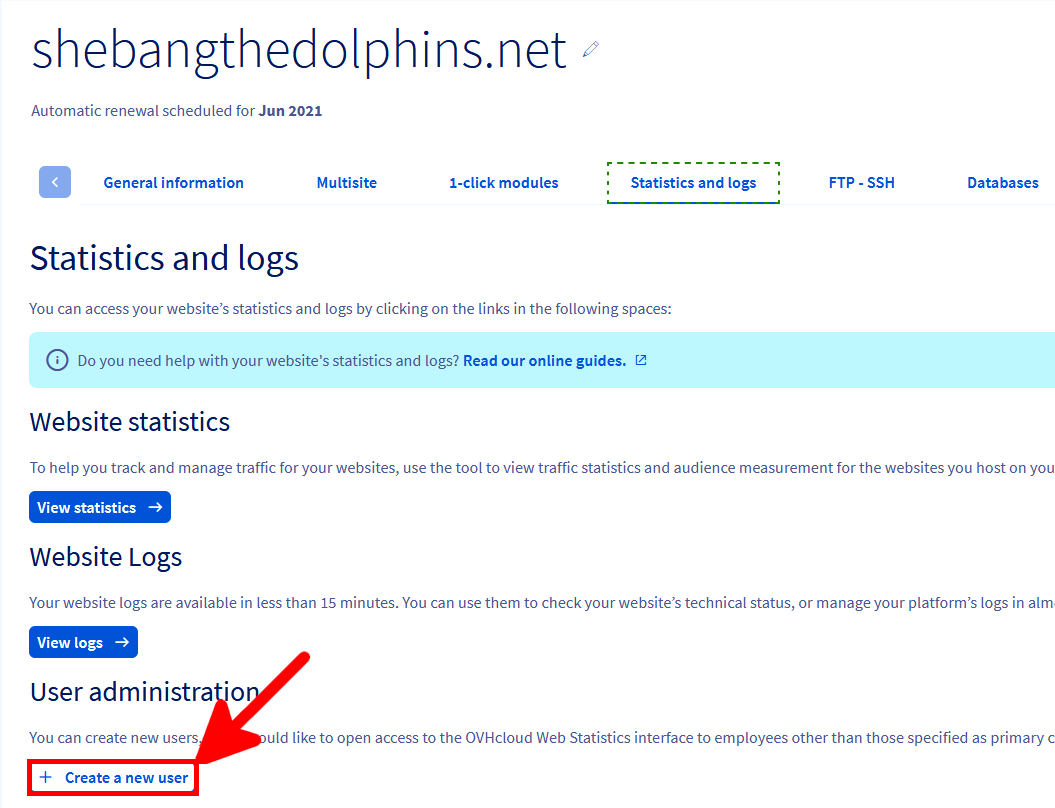

From Statistics and logs menu, click Create a new user :

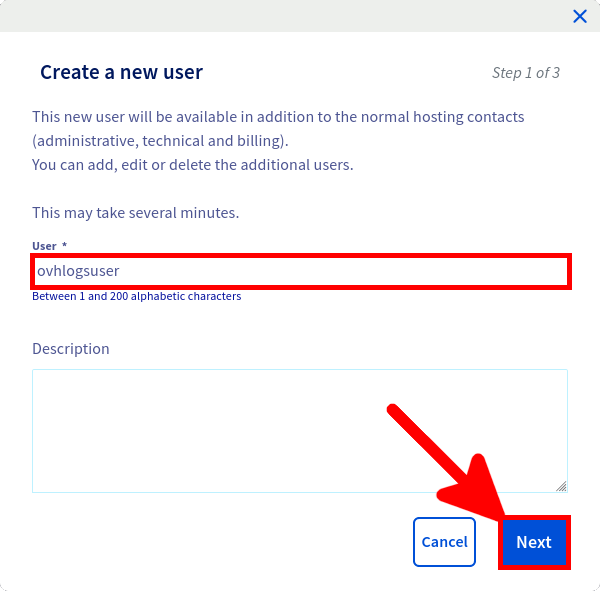

Set a user name, and click Next :

Respect the password requirements, and click Next :

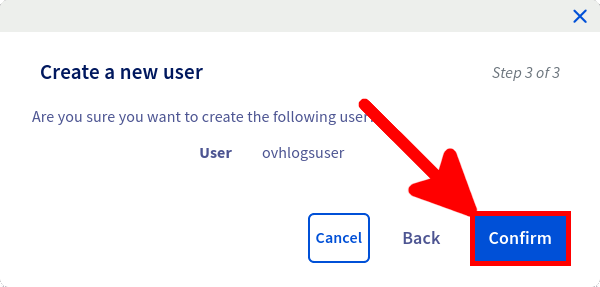

Click Confirm, to create :

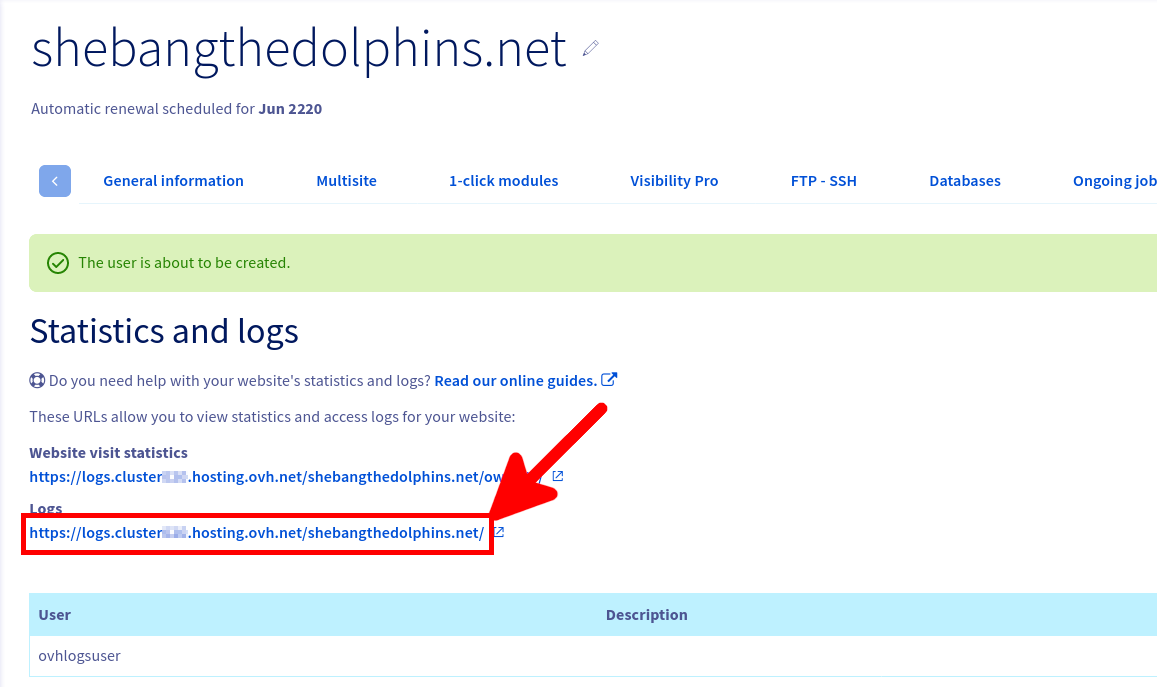

Copy the https://log.clusterXXX.hosting.ovh.net/YOUR_DOMAIN/ url :

We now have everything we need to download our logs.

Download Logs

GNU/Linux

Set variables :

Set your Log User variable :

[user@host ~]$ USR=ovhlogsuser

Set your Log Password variable :

[user@host ~]$ PASS=Myverycomplexpassw0rD

Set your URL variable :

[user@host ~]$ URL=https://log.clusterXXX.hosting.ovh.net/shebangthedolphins.net/

Set your Domain variable :

[user@host ~]$ DOMAIN=$(awk -F '/' '{ print $4 }' <<< $URL)

Or simply :

[user@host ~]$ DOMAIN=shebangthedolphins.net

Download

Download all logs for a given month in the current directory :

[user@host ~]$ wget --http-user="$USR" --http-password="$PASS" -A *gz -r -nd ""$URL"/logs/logs-10-2020/"

[user@host ~]$ ls -lh
total 596K
-rw------- 1 std std  55 10 déc.   2019 robots.txt.tmp
-rw-r--r-- 1 std std 24K  2 oct.  02:56 shebangthedolphins.net-01-10-2020.log.gz
-rw-r--r-- 1 std std 17K  3 oct.  02:19 shebangthedolphins.net-02-10-2020.log.gz
[…]
-rw-r--r-- 1 std std 14K 31 oct.  06:08 shebangthedolphins.net-30-10-2020.log.gz
-rw-r--r-- 1 std std 52K  1 nov.  06:08 shebangthedolphins.net-31-10-2020.log.gz

Download last log to current directory :

[user@host ~]$ wget --http-user="$USR" --http-password="$PASS" "$URL"/logs/logs-$(/bin/date --date='1 days ago' '+%m-%Y')/"$DOMAIN"-$(/bin/date --date='1 days ago' '+%d-%m-%Y').log.gz

[user@host ~]$ ls -lh
total 20K
-rw-r--r-- 1 std std 18K 25 nov.  06:29 shebangthedolphins.net-24-11-2020.log.gz

Reformat the files names shebangthedolphins.net-dd-mm-yyyyy.log.gz to yyyyy-mm-dd-shebangthedolphins.net.log.gz with perl-rename :

[user@host ~]$ perl-rename -v 's/(.*)-(\d\d)-(\d\d)-(\d\d\d\d)(.*)/$4-$3-$2-$1$5/' *gz

[user@host ~]$ ls -lh
total 596K
-rw-r--r-- 1 std std 24K  2 oct.  02:56 2020-10-01-shebangthedolphins.net.log.gz
-rw-r--r-- 1 std std 17K  3 oct.  02:19 2020-10-02-shebangthedolphins.net.log.gz
-rw-r--r-- 1 std std 14K  4 oct.  02:32 2020-10-03-shebangthedolphins.net.log.gz

Download log to specific directory /tmp/ :

[user@host ~]$ wget --http-user="$USR" --http-password="$PASS" "$URL"/logs/logs-$(/bin/date --date='1 days ago' '+%m-%Y')/"$DOMAIN"-$(/bin/date --date='1 days ago' '+%d-%m-%Y').log.gz -O /tmp/$(/bin/date --date='1 days ago' '+%Y-%m-%d')-"$DOMAIN".log.gz

[user@host ~]$ ls -lh /tmp/*gz
-rw-r--r-- 1 std std 18K 25 nov.  06:29 /tmp/2020-11-24-shebangthedolphins.net.log.gz

Download the last 30 logs files in the /tmp/ :

[user@host ~]$ for DAY in $(seq 1 30); do wget --http-user="$USR" --http-password="$PASS" "$URL"/logs/logs-$(/bin/date --date=''$DAY' days ago' '+%m-%Y')/"$DOMAIN"-$(/bin/date --date=''$DAY' days ago' '+%d-%m-%Y').log.gz -O /tmp/$(/bin/date --date=''$DAY' days ago' '+%Y-%m-%d')-"$DOMAIN".log.gz; done

[user@host ~]$ ls -lh /tmp/*gz
-rw-r--r-- 1 std std 17K 26 oct.  06:12 /tmp/2020-10-25-shebangthedolphins.net.log.gz
-rw-r--r-- 1 std std 14K 27 oct.  06:44 /tmp/2020-10-26-shebangthedolphins.net.log.gz
[...]
-rw-r--r-- 1 std std 18K 24 nov.  06:38 /tmp/2020-11-23-shebangthedolphins.net.log.gz
-rw-r--r-- 1 std std 18K 25 nov.  06:29 /tmp/2020-11-24-shebangthedolphins.net.log.gz

Windows/PowerShell

Set variables :

Set your Log User variables :

PS C:\Users\std> $user = "ovhlogsuser"

Set your Log Password variables :

PS C:\Users\std> $pass = "Myverycomplexpassw0rD" PS C:\Users\std> $secpasswd = ConvertTo-SecureString $pass -AsPlainText -Force PS C:\Users\std> $credential = New-Object System.Management.Automation.PSCredential($user, $secpasswd)

Set your Domain variable :

PS C:\Users\std> $domain = "shebangthedolphins.net"

Set your URL variable :

PS C:\Users\std> $url = "https://log.clusterXXX.hosting.ovh.net/$domain/"

Download

Download last log in text format to current directory :

PS C:\Users\std> Invoke-WebRequest -Credential $credential -Uri ("$url" + "logs/logs-" + $((Get-Date).AddDays(-1).ToString("MM-yyyy")) + "/$domain" + "-" + $((Get-Date).AddDays(-1).ToString("dd-MM-yyyy"))  + ".log.gz") -OutFile "$((Get-Date).AddDays(-1).ToString("yyyy-MM-dd"))-$domain.log"

PS C:\Users\std> dir


    Directory: C:\Users\std


ode                LastWriteTime         Length Name
----                -------------         ------ ----
-a----       05/12/2020     15:45         360238 2020-12-04-shebangthedolphins.net.log

Download the 30 last logs file in text format :

PS C:\Users\std>  1..30 | ForEach-Object { Invoke-WebRequest -Credential $credential -Uri ("$url" + "logs/logs-" + $((Get-Date).AddDays(-"$_").ToString("MM-yyyy")) + "/$domain" + "-" + $((Get-Date).AddDays(-"$_").ToString("dd-MM-yyyy"))  + ".log.gz") -OutFile "$((Get-Date).AddDays(-"$_").ToString("yyyy-MM-dd"))-$domain.log" }

Extract informations

GNU/Linux

Now that we've downloaded our logs files, we can use command line to extract useful informations.

Page views statistics

List and count most page views for specific log file (2020-11-24-shebangthedolphins.net.log.gz) :

[user@host ~]$ DOMAIN=shebangthedolphins.net

[user@host ~]$ zgrep -viE 'Bytespider|Trident|bot|404|GET \/ HTTP|BingPreview|Seekport Crawler' 2020-11-24-shebangthedolphins.net.log.gz | grep html | awk '{ print $1" "$11 }' | sort | uniq | awk '{ print $2 }' | sort | uniq -c | sort -n | tr -s "[ ]" | sed 's/^ //' | grep "$DOMAIN"
1 "http://shebangthedolphins.net/backup_burp.html"
1 "http://shebangthedolphins.net/backup_burp.html"
1 "http://shebangthedolphins.net/prog_autoit_backup.html"
1 "http://shebangthedolphins.net/prog_powershell_kesc.html"
1 "http://shebangthedolphins.net/vpn_ipsec_06linux-to-linux_tunnel-x509.html"
1 "https://shebangthedolphins.net/fr/windows_grouppolicy_execute_powershell_script.html"
1 "https://shebangthedolphins.net/gnulinux_courier.html"
1 "https://shebangthedolphins.net/gnulinux_vnc_remotedesktop.html"
1 "https://shebangthedolphins.net/vpn_openvpn_windows_server.html"
1 "https://shebangthedolphins.net/windows_icacls.html"
1 "http://www.shebangthedolphins.net/vpn_ipsec_03linux-to-windows_transport-psk.html"
2 "https://shebangthedolphins.net/windows_mssql_alwayson.html"
3 "https://shebangthedolphins.net/fr/vpn_openvpn_buster.html"
7 "https://shebangthedolphins.net/ubiquiti_ssh_commands.html"

List and count page views for all log files (*.log.gz) :

[user@host ~]$ DOMAIN=shebangthedolphins.net

[user@host ~]$ for i in *.log.gz; do echo "------------"; echo "$i"; zgrep -viE 'Bytespider|Trident|bot|404|GET \/ HTTP|BingPreview|Seekport Crawler' "$i" | grep html | awk '{ print $1" "$11 }' | grep "$DOMAIN" | sort | uniq | awk '{ print $2 }' | wc -l; done
------------
2020-11-19-shebangthedolphins.net.log.gz
19
------------
2020-11-20-shebangthedolphins.net.log.gz
24
------------
2020-11-21-shebangthedolphins.net.log.gz
8
------------
2020-11-22-shebangthedolphins.net.log.gz
16
------------
2020-11-23-shebangthedolphins.net.log.gz
15
------------
2020-11-24-shebangthedolphins.net.log.gz
13

List and count page views for all log files (*.log.gz) and by month :

[user@host ~]$ DOMAIN=shebangthedolphins.net [user@host ~]$ YEAR=2020

[user@host ~]$ for i in $(seq -w 1 12); do echo "------------"; echo "$YEAR-$i"; zgrep -viE 'Bytespider|Trident|bot|404|GET \/ HTTP|BingPreview|Seekport Crawler' $YEAR-"$i"*.log.gz | grep html | awk '{ print $1" "$11 }' | grep "$DOMAIN" | sort | uniq | awk '{ print $2 }' | wc -l; done 2>/dev/null
------------
2020-01
101
------------
2020-02
73
------------
2020-03
92
------------
2020-04
91
------------
2020-05
87
------------
2020-06
73
------------
2020-07
81
------------
2020-08
97
------------
2020-09
135

Page views statistics from a search engine

List and count page views from search engines (here for google, bing, qwant and duckduckgo) for specific log file (2020-11-24-shebangthedolphins.net.log.gz) :

[user@host ~]$ zgrep "html HTTP.*200.*[0-9]\{4\} \"\(https://www.google\|https://www.bing\|https://www.qwant\|https://duckduckgo\)" 2021-08-20-shebangthedolphins.net.log.gz | grep html | awk '{ print $1" "$7 }' | sort -n | uniq | awk '{ print $2 }' | sort | uniq -c | sort -n
[…]
      8 /windows_grouppolicy_manage_searchbox.html
      9 /windows_icacls.html
     10 /vpn_openvpn_bullseye.html
     11 /gnulinux_vnc_remotedesktop.html
     11 /windows_rds_mfa.html
     12 /fr/vpn_openvpn_windows_server.html
     14 /windows_grouppolicy_shutdown.html
     15 /gnulinux_nftables_examples.html
     25 /vpn_openvpn_windows_server.html
     72 /ubiquiti_ssh_commands.html

List and count page views from search engines (here for google, bing, qwant and duckduckgo) and for all log files (*.log.gz) :

[user@host ~]$ zcat *.log.gz | grep "html HTTP.*200.*[0-9]\{4\} \"\(https://www.google\|https://www.bing\|https://www.qwant\|https://duckduckgo\)" | grep html | awk '{ print $1" "$7 }' | sort -n | uniq | awk '{ print $2 }' | sort | uniq -c | sort -n
[…]
     11 /gnulinux_vnc_remotedesktop.html
     11 /openbsd_packetfilter.html
     12 /fr/gnulinux_nftables_examples.html
     15 /windows_imule.html
     20 /backup_burp.html
     36 /fr/vpn_openvpn_buster.html
     38 /vpn_openvpn_windows_server.html
    112 /ubiquiti_ssh_commands.html

List and count page views from search engines (here for google, bing, qwant and duckduckgo), view by month :

[user@host ~]$ YEAR=2021

[user@host ~]$ for i in $(seq -w 1 12); do echo "------------"; echo "$YEAR-$i"; zcat $YEAR-"$i"*.log.gz | grep "html HTTP.*200.*[0-9]\{4\} \"\(https://www.google\|https://www.bing\|https://www.qwant\|https://duckduckgo\)" | grep html | awk '{ print $1" "$7 }' | sort -n | uniq | wc -l; done 2>/dev/null
------------
2021-01
1311
------------
2021-02
1650
------------
2021-03
2566
------------
2021-04
3511
------------
2021-05
5452
------------
2021-06
6922
------------
2021-07
6437
------------
2021-08
4788

Scripts

Scripts that I use to quickly see evolution of the search results.

Script v1

First version, displays results by search engine.

Code

#! /bin/sh
for LOGS in *.log.gz; do
	echo "-----------------------------"
	echo "LOGS : $LOGS"
	for i in www.google www.bing www.qwant duckduckgo; do
		RESULT=$(zgrep "html HTTP.*200.*[0-9]\{4\} \"https://"$i"" $LOGS | wc -l)
		echo "$i = $RESULT"
	done
done

Output

-----------------------------
LOGS : 2020-11-21-shebangthedolphins.net.log.gz
www.google = 6
www.bing = 1
www.qwant = 0
duckduckgo = 4
-----------------------------
LOGS : 2020-11-22-shebangthedolphins.net.log.gz
www.google = 10
www.bing = 2
www.qwant = 0
duckduckgo = 6
-----------------------------
LOGS : 2020-11-23-shebangthedolphins.net.log.gz
www.google = 7
www.bing = 6
www.qwant = 2
duckduckgo = 1

Script v2

Slight improvements :
- Accept an argument to specify the period
- Displays the total

Code

#! /bin/sh
for LOGS in "$1"*.log.gz; do
        TOTAL=0
        echo "-----------------------------"
        echo "LOGS : $LOGS"
        for i in www.google www.bing www.qwant duckduckgo www.ecosia.org; do
                RESULT=$(zgrep "html HTTP.*200.*[0-9]\{4\} \"https://"$i"" $LOGS | wc -l)
                echo "$i = $RESULT"
                TOTAL=$(($TOTAL+$RESULT))
        done
	echo "TOTAL $(date -d $(awk -F'-' '{ print $1"-"$2"-"$3 }' <<< $LOG) '+%A') : $TOTAL"
done

Output

[user@host ~]$ sh ./std_ovh.sh 2021-02-1

-----------------------------
LOGS : 2021-02-10-shebangthedolphins.net.log.gz
www.google = 31
www.bing = 15
www.qwant = 1
duckduckgo = 23
www.ecosia.org = 0
TOTAL wednesday : 70
-----------------------------
LOGS : 2021-02-11-shebangthedolphins.net.log.gz
www.google = 38
www.bing = 11
www.qwant = 2
duckduckgo = 24
www.ecosia.org = 0
TOTAL thursday : 75
-----------------------------

Script v3

Uge improvements :

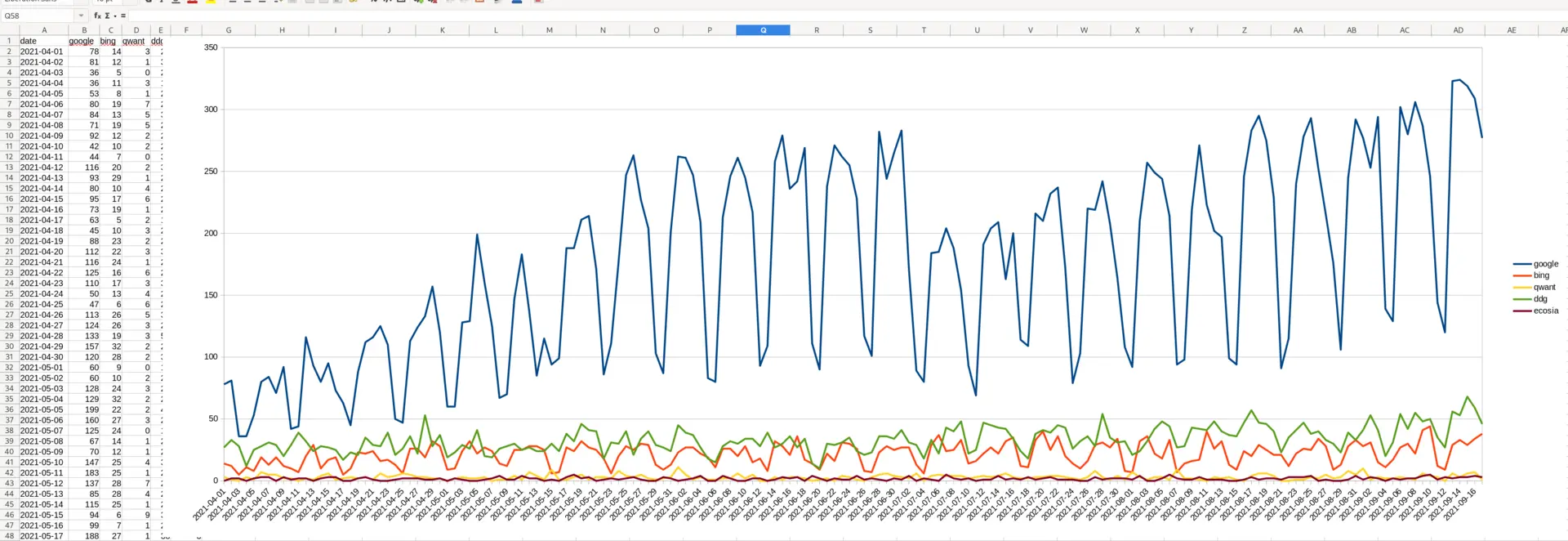

- Able to export to csv format (in a /tmp/stats.csv file) with -c or -p argument

Code

#! /bin/sh
# Role : Extract ovh logs stats
# Author : http://shebangthedolphins.net/

pages=false
csv=false

usage()
{
        echo "usage: ./std_ovh.sh YYYY-MM-DD"
        echo "[-c] : export total stats to /tmp/stats.csv file"
        echo "[-p <url>|<XX most viewed pages>] : export specific <url> or XX most viewed urls to /tmp/stats.csv file"
        echo "ex : ./std_ovh.sh 2021-03"
        echo "ex : ./std_ovh.sh 2021-03 -c"
        echo "ex : ./std_ovh.sh 2021-03 -p vpn_openvpn_windows_server.html"
        echo "ex : ./std_ovh.sh 2021-03 -p 10"
        exit 3
}

case "$1" in
        *)
                LOGS=$1
                shift    # Remove the first argument (wich will be for example 2021-09-)
                while getopts "p:ch" OPTNAME; do
                        case "$OPTNAME" in
                                p)
                                        ARGP=${OPTARG}
                                        pages=true
                                        ;;
                                c)
                                        csv=true
                                        ;;
                                h)
                                        usage
                                        ;;
                                *)
                                        usage
                                        ;;
                        esac
                done
esac

# show help if no arguments or -c AND -p are set
if [[ ( -z "$LOGS" ) || ( $pages == "true" && $csv == "true" ) ]] ; then
    usage
fi

# create /tmp/stats.csv header
if $csv; then echo "date,google,bing,qwant,ddg,ecosia" > /tmp/stats.csv; fi
if $pages; then
        if [[ "$ARGP" =~ ^[0-9]+$ ]]; then
                HEAD=$ARGP
                HTML="html"
        else
                HTML=$ARGP
                HEAD=1
        fi
        for i in $(zgrep "$HTML HTTP.*200.*[0-9]\{4\} \"https://\(www.google\|www.bing\|www.qwant\|duckduckgo\|www.ecosia.org\)" $LOGS*.log.gz | sed 's/.*GET \(.*\) HTTP.*/\1/' | sort | uniq -c | sort -rn | head -n $HEAD | awk '{ print $2 }');
        do
                csv_header=$csv_header,$i
        done
        csv_header="date"$csv_header
        echo "$csv_header" > /tmp/stats.csv
        TMPFILE=mktemp #create mktemp file and put path inside TMPFILE variable. This file is used to improve perf (we store logs needed only in it).
fi
for LOGS in $(ls -1 $LOGS*.log.gz); do
        if $pages
        then
                csv_data=$(date -d $(awk -F'-' '{ print $1"-"$2"-"$3 }' <<< $LOGS) '+%Y.%m.%d')
                zgrep "html HTTP.*200.*[0-9]\{4\} \"https://\(www.google\|www.bing\|www.qwant\|duckduckgo\|www.ecosia.org\)" $LOGS > $TMPFILE #put interesting results inside TMPFILE
                for i in $(sed 's/,/\n/g' /tmp/stats.csv | grep "html")
                do
                        csv_data=$csv_data","$(zgrep "$i HTTP.*200.*[0-9]\{4\} \"https://\(www.google\|www.bing\|www.qwant\|duckduckgo\|www.ecosia.org\)" $TMPFILE | wc -l)
                done
                echo "$csv_data" >> /tmp/stats.csv

        else
                TOTAL=0
                echo "-----------------------------"
                echo "LOGS : $LOGS"
                CSV=$(awk -F"-" '{ print $1"-"$2"-"$3 }' <<< $LOGS)
                for i in www.google www.bing www.qwant duckduckgo www.ecosia.org; do
                        RESULT=$(zgrep "html HTTP.*200.*[0-9]\{4\} \"https://"$i"" $LOGS | wc -l)
                        echo "$i = $RESULT"
                        TOTAL=$(($TOTAL+$RESULT))
                        if $csv; then
                                CSV=$CSV,"$RESULT"
                        fi
                done
                echo "TOTAL $(date -d $(awk -F'-' '{ print $1"-"$2"-"$3 }' <<< $LOGS) '+%A %d %b %Y') : $TOTAL"
                if $csv; then echo "$CSV" >> /tmp/stats.csv; fi
        fi
done
if $pages; then rm $TMPFILE; fi #remove TMPFILE

Usage / Output

Export stats to csv file :

[user@host ~]$ sh ./std_ovh.sh 2021- -c [user@host ~]$ tail /tmp/stats.csv

date,google,bing,qwant,ddg,ecosia
2021-03-30,82,10,1,38,0
2021-03-31,87,26,5,32,0
[…]
2021-04-07,70,17,5,20,1
2021-04-08,71,19,5,29,0

Which allow us to create pretty graphs with LibreOffice :

OVH | Statistics graph with libreoffice — OVH stats under LibreOffice

Export three most visited pages stats to csv file :

[user@host ~]$ sh ./std_ovh.sh 2021-09 -p 3 [user@host ~]$ tail /tmp/stats.csv

date,/ubiquiti_ssh_commands.html,/vpn_openvpn_bullseye.html,/vpn_openvpn_windows_server.html
2021.09.01,89,28,39
2021.09.02,109,19,41
[…]
2021.09.06,82,33,44
2021.09.07,94,37,29

Export vpn_openvpn_bullseye.html stats to csv file :

[user@host ~]$ sh ./std_ovh.sh 2021-09 -p vpn_openvpn_bullseye.html [user@host ~]$ tail /tmp/stats.csv

date,/vpn_openvpn_bullseye.html
2021.09.01,28
2021.09.02,19
[…]
2021.09.06,33
2021.09.07,37

Windows/PowerShell

Page views statistics

List and count most page views for specific log file (2020-11-05-shebangthedolphins.net.log) :

PS C:\ > $domain = "shebangthedolphins.net"

PS C:\ > Select-String .\2020-11-05-shebangthedolphins.net.log -NotMatch -Pattern "Bytespider","Trident","bot","404","GET / HTTP","BingPreview","Seekport Crawler" | Select-String -Pattern "html" | %{"{0} {1}" -f $_.Line.ToString().Split(' ')[0],$_.Line.ToString().Split(' ')[10]} | Select-String -Pattern "$domain.*html" | Sort-Object | Get-Unique | %{"{0}" -f $_.Line.ToString().Split(' ')[1]} | group -NoElement | Sort-Object Count |  %{"{0} {1}" -f $_.Count, $_.Name }
1 "https://shebangthedolphins.net/fr/prog_introduction.html"
1 "https://shebangthedolphins.net/fr/prog_sh_check_snmp_synology.html"
1 "http://shebangthedolphins.net/openbsd_network_interfaces.html"
1 "https://shebangthedolphins.net/fr/menu.html"
1 "https://shebangthedolphins.net/fr/windows_commandes.html"
1 "https://shebangthedolphins.net/fr/windows_run_powershell_taskschd.html"
1 "http://shebangthedolphins.net/prog_sh_check_snmp_synology.html"
1 "https://shebangthedolphins.net/fr/windows_grouppolicy_reset.html"
1 "https://shebangthedolphins.net/fr/windows_grouppolicy_update_policy.html"
1 "https://shebangthedolphins.net/virtualization_kvm_windows10.html"
1 "https://shebangthedolphins.net/windows_event_on_usb.html"
1 "https://shebangthedolphins.net/prog_powershell_movenetfiles.html"
1 "http://shebangthedolphins.net/prog_autoit_backup.html"
1 "https://shebangthedolphins.net/fr/vpn_openvpn_buster.html"
1 "http://shebangthedolphins.net/prog_powershell_kesc.html"
1 "https://shebangthedolphins.net/index.html"
1 "http://shebangthedolphins.net/gnulinux_courier.html"
4 "https://shebangthedolphins.net/ubiquiti_ssh_commands.html"
6 "https://shebangthedolphins.net/vpn_openvpn_windows_server.html"

Computing

Music

Misc

How To download and process OVH daily raw logs to extract useful information

Intro

Configuration

Create dedicated log user account

Download Logs

GNU/Linux

Set variables :

Download

Windows/PowerShell

Set variables :

Download

Extract informations

GNU/Linux

Page views statistics

Page views statistics from a search engine

Scripts

Script v1

Code

Output

Script v2

Code

Output

Script v3

Code

Usage / Output

Windows/PowerShell

Page views statistics

References
