Tunnel mode between Racoon and Windows hosts with x509 authentication

Intro

Mode : Tunnel, with x509 authentication
Alice : Debian 8

ip : 10.0.0.200
virtual ip : 172.31.0.1
Ipsec tools : 1:0.7.3-12
Racoon : 1:0.7.3-12

Regis : Windows 7 SP1

ip : 10.0.0.118
virtual ip : 172.31.0.2

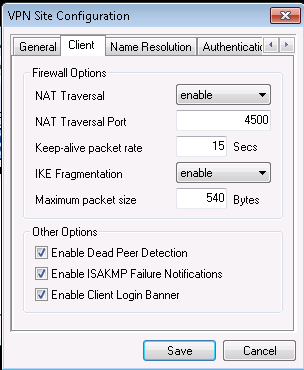

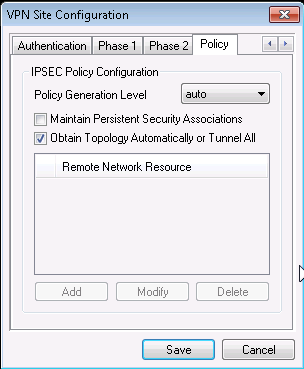

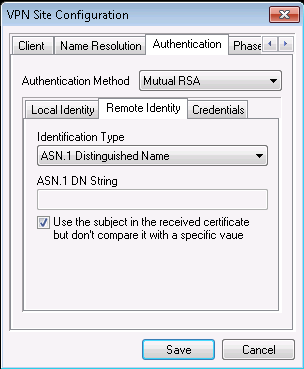

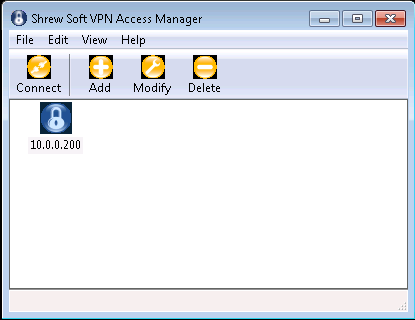

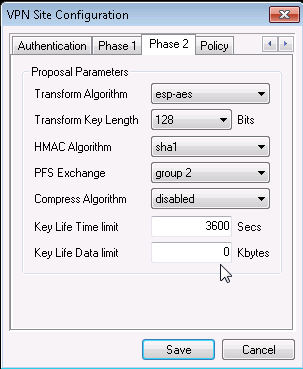

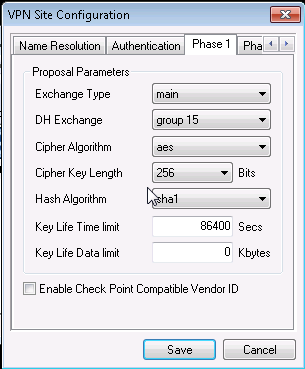

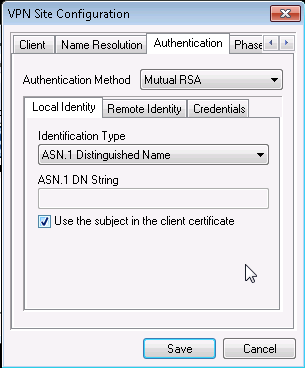

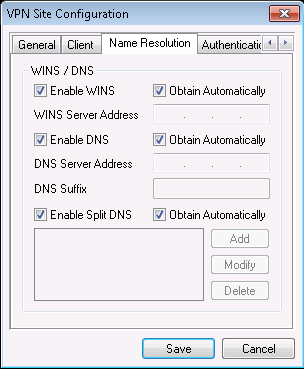

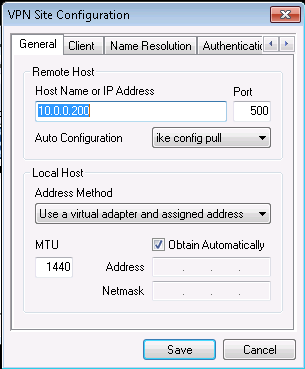

Shrew Soft VPN Client : 2.2.2

Shrew Soft client doesn't support Transport mode but it allows to use AES (more secure than 3DES). So, in order to make our hosts communicate we need to create a virtual interface on the GNU/Linux host.

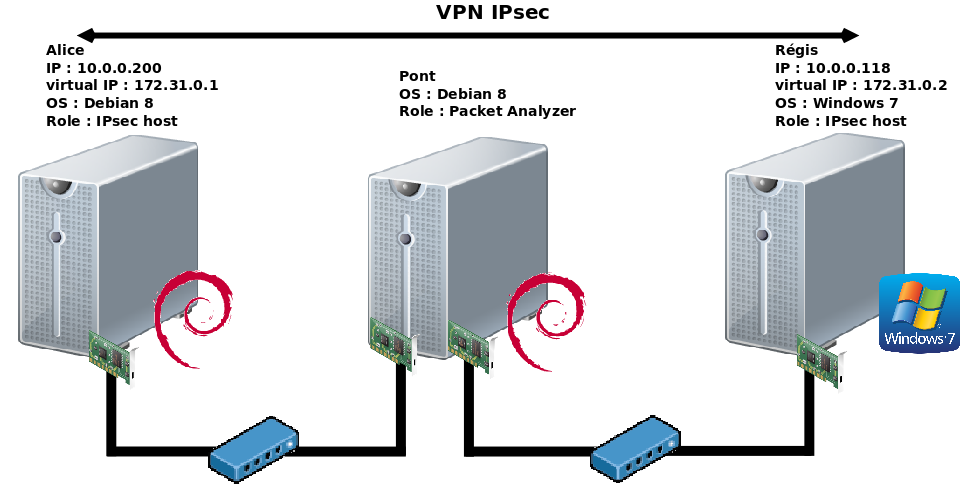

Network diagram

Alice

Virtual interface on the debian host

user@alice # apt-get install uml-utilities
tunctl -u admin
ifconfig tap0 172.31.0.1
ifconfig tap0 up

/etc/ipsec-tools.conf

#!/usr/sbin/setkey -f

## Flush the SAD and SPD
#
flush;
spdflush;

spdadd 10.0.0.200 10.0.0.118 any -P out ipsec
        esp/transport//require;

spdadd 10.0.0.118 10.0.0.200 any -P in ipsec
        esp/transport//require;

/etc/racoon/racon.conf

#path pre_shared_key "/etc/racoon/psk.txt";
path certificate "/etc/racoon/certs";

listen {
	isakmp 10.0.0.200 [500];
}

#remote 10.0.0.118 {
remote anonymous {
	exchange_mode main;
	my_identifier asn1dn;
	peers_identifier asn1dn;
	certificate_type x509 "newcert.pem" "privkey.pem";
	ca_type x509 "cacert.pem";
	passive on;
	generate_policy unique;
	ike_frag on;
	nat_traversal on;
	dpd_delay 30;
	proposal_check claim;
	lifetime time 24 hours;
	verify_identifier on;
	proposal {
		encryption_algorithm aes 256;
		hash_algorithm sha1;
		authentication_method rsasig ;
		dh_group 15;
	}
}

mode_cfg {
	network4 172.31.0.2;     # 192.168.100.1 est la première adresse allouee aux clients VPN
	split_network include 172.31.0.0/24;
	pool_size 20;
	netmask4 255.255.255.0;
	auth_source system;
	#dns4 192.168.200.254;       # 192.168.200.254 est l'adresse du DNS dans le reseau local distant
	banner "/etc/racoon/motd";
	#pfs_group 0;
}

#sainfo address 10.0.0.200 any address 10.0.0.118 any {
sainfo anonymous {
	lifetime time 1 hour;
	encryption_algorithm aes 128;
	authentication_algorithm hmac_sha1;
	compression_algorithm deflate;
}
