Cisco MAC filtering for Catalyst series

Cisco logo

We will see how to manage mac filtering with commands line on Cisco Catalyst series.

Configuration

  • Switch model : Cisco catalyst 1000

Create ACL

  • Create acl MF01 :
Switch (config)# mac access-list extended MF01
  • Allow 24:B6:FD:14:08:53 mac address :
Switch (config-mac-al)# permit 24:B6:FD:14:08:53 00:00:00:00:00:00 any
  • Allow 48:bd:0e:02:ea:41 mac address :
Switch (config-mac-al)# permit 48:bd:0e:02:ea:41 00:00:00:00:00:00 any
  • Allow 00:11:xx:xx:xx:xx mac address family :
Switch (config-mac-al)# permit 00:11:00:00:00:00 00:00:FF:FF:FF:FF any
  • Every other addresses will be denied :
Switch (config-mac-al)# deny any any

Associate MF01 acl to interfaces

  • Configure interfaces from gi1/0/4 to gi1/0/18 :
Switch (config)# interface range ge1/0/4-18
  • Apply MF01 access list to interfaces :
Switch (config-if-range)# mac access-group MF01 in
  • Disassociate MF01 access list with interfaces :
Switch (config-if-range)# no mac access-group MF01 in

Useful Commands

  • Show mac addresses :
Switch # show mac address-table
  • Retrieve mac addresses from port Gi1/0/1 :
Switch # show mac address-table | include Gi1/0/1
  • Show access list :
Switch # show access-lists MF01 Extended MAC access list MF01 permit host 24b6.fd14.0853 any permit host 48bd.0e02.ea41 any permit 0011.0000.0000 0000.ffff.ffff any deny any any
  • Delete an acl rule :
Switch (config)# mac access-list extended MF01 Switch(config-mac-al)# no permit 24:B6:FD:14:08:53 00:00:00:00:00:00 any
  • Delete an acl :
Switch (config)# no mac access-list extended MF01

Example

Let see how to allow only 00:11 MAC addresses family and 24:B6:FD:14:08:53 host. Any others addresses will be rejected.

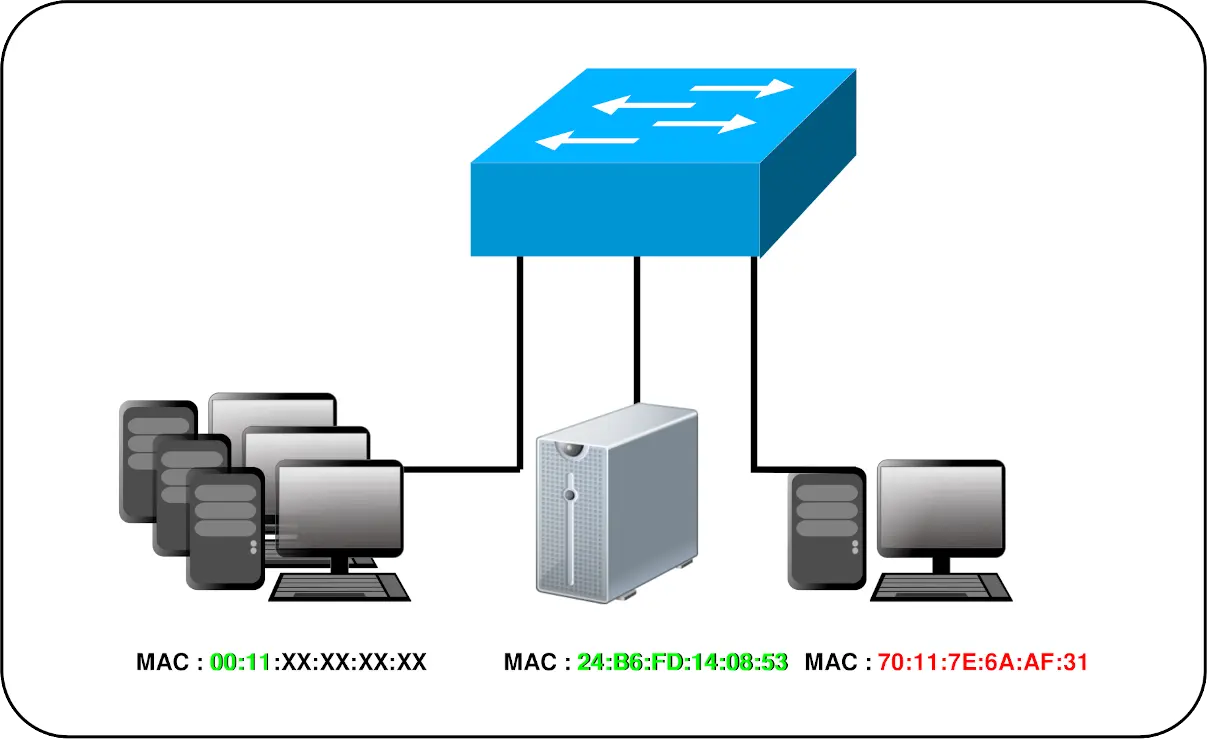

computers connected to a switch which filter MAC
  • Create access list :
Switch (config)# mac access-list extended MF01
  • Allow 00:11:XX:XX:XX:XX family :
Switch (config-mac-al)# permit 00:11:00:00:00:00 00:00:FF:FF:FF:FF any
  • Allow 24:B6:FD:14:08:53 host :
Switch (config-mac-al)# permit 24:B6:FD:14:08:53 00:00:00:00:00:00 any
  • Deny any others host :
Switch (config-mac-al)# deny any any
  • Apply MAC filtering to interfaces. Here from ge1/0/1 to ge1/0/24 :
Switch (config)# interface range ge1/0/1-24 Switch (config-if-range)# mac access-group MF01 in
