Setting Up Roundcube with CalDAV Support for Shared Calendar

In a previous article, I looked at setting up a CalDAV server (see here). As part of my effort to replace the aging Zimbra solution, the next step is to set up a webmail and calendar solution.

Here we'll look at how to set up a Roundcube server with a SQLite3 database on Debian (easy!) as well as adding a calendar plugin (less easy :/).

For this configuration, I opted for the SQLite3 database, ideal for a small user base, and the use of Roundcube Debian packages for easy updating and maintenance. To add the calendar to Roundcube, I chose the JodliDev/calendar plugin, available free on GitHub. Because it still seems to be supported, and allows you to connect to a CalDAV server. Special thanks to JodliDev and community contributors, Offerel and mtudury, for their valuable contributions.

Prerequisites include a functioning SMTP and IMAP server for webmail, as well as a CalDAV calendar sharing server. In addition, it's important to note that, at the time of writing, the solution only supports a single calendar, as I haven't been able to add any other calendars in parallel. Hopefully, the plugin will be upgraded in the coming months.

Configuration:
- debian: 12 bookworm
- php: 8.2
- roundcube: 1.6.5
- sqlite3: 3.40

Roundcube

Installation

Installing packages:

root@host:~# apt update && apt install roundcube sqlite3 roundcube-plugins roundcube-sqlite3

Answer yes to configure the database:

Rouncube package installation process on a Debian asking to configure database

Edit /etc/apache2/conf-enabled/roundcube.conf and uncomment this line:

Alias /roundcube /var/lib/roundcube/public_html
[…]

Configuration

Here, the mail server has Let's Encrypt certificates, associated with imaps and smtps services. So I need to use the names and the keyword ssl:// to connect.

Edit the configuration file /etc/roundcube/config.inc.php, it says it's a good thing to change the des_key, so do it if you like :):

$config['imap_host'] = ["ssl://mx.std.rocks:993"];
$config['smtp_host'] = 'ssl://mx.std.rocks:465';
// This key is used to encrypt the users imap password which is stored
// in the session record. For the default cipher method it must be
// exactly 24 characters long.
// YOUR KEY MUST BE DIFFERENT THAN THE SAMPLE VALUE FOR SECURITY REASONS
$config['des_key'] = 'PaaKtcPFfopJxHHyTe9rahk3';

Restart the apache2 service:

root@host:~# systemctl restart apache2

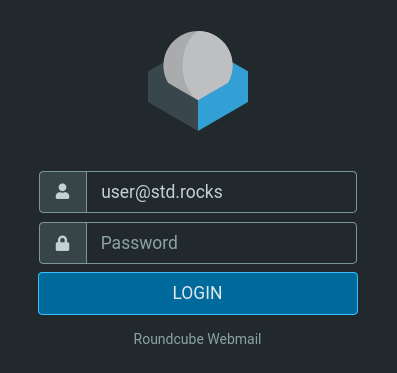

The Roundcube web page should be accessible via HTTP (ex: http://IP_ROUNDCUBE/roundcube):

Enable HTTPS

For security reasons, its a good thing to enable HTTPS connections to access Roundcube. Let's see how to do that.

Enable apache ssl module:

root@host:~# a2enmod ssl

Let's Encrypt

If you have Let's Encrypt certificates, edit /etc/apache2/sites-available/default-ssl.conf:

SSLCertificateFile /etc/letsencrypt/roundcube.std.rocks/fullchain.pem
SSLCertificateKeyFile /etc/letsencrypt/roundcube.std.rocks/privkey.pem
SSLCertificateChainFile /etc/letsencrypt/roundcube.std.rocks/chain.pem

Self-Signed Certificates

Alternatively, you can create a self-signed certificate:

root@host:~# mkdir /etc/apache2/ssl/

root@host:~# openssl req -x509 -nodes -days 3650 -newkey rsa:4096 -keyout /etc/apache2/ssl/selfsigned.key -out /etc/apache2/ssl/selsigned.crt

root@host:~# cat /etc/apache2/ssl/selfsigned.key /etc/apache2/ssl/selsigned.crt > /etc/apache2/ssl/cert.pem

Finalize Configuration

Edit the /etc/apache2/sites-available/default-ssl.conf configuration file:

DocumentRoot /var/lib/roundcube/public_html/
#AUTOGENERATE CERTIFICATES
SSLCertificateFile    /etc/apache2/ssl/cert.pem
SSLCertificateKeyFile /etc/apache2/ssl/selfsigned.key

Edit the /etc/apache2/ports.conf configuration file and disable http:

#Listen 80

Enable and restart the apache2 service:

root@host:~# a2ensite default-ssl root@host:~# systemctl restart apache2

Prequisites

Note: to avoid the GitHubrate limit we need to open a free account in order to obtain an OAuth token. Once the account has been created, go to https://github.com/settings/tokens page to generate a new token.

Considerations to make about the CalDAV server:
- If using HTTPS, ensure the CalDAV server employs a valid certificate; otherwise, use HTTP or add the root certificate to your Roundcube server.
- Use basic authentication

Basic Authentication

Configure the remote calendar with Basic Auth; for example, if you have a Baïkal shared calendar server:

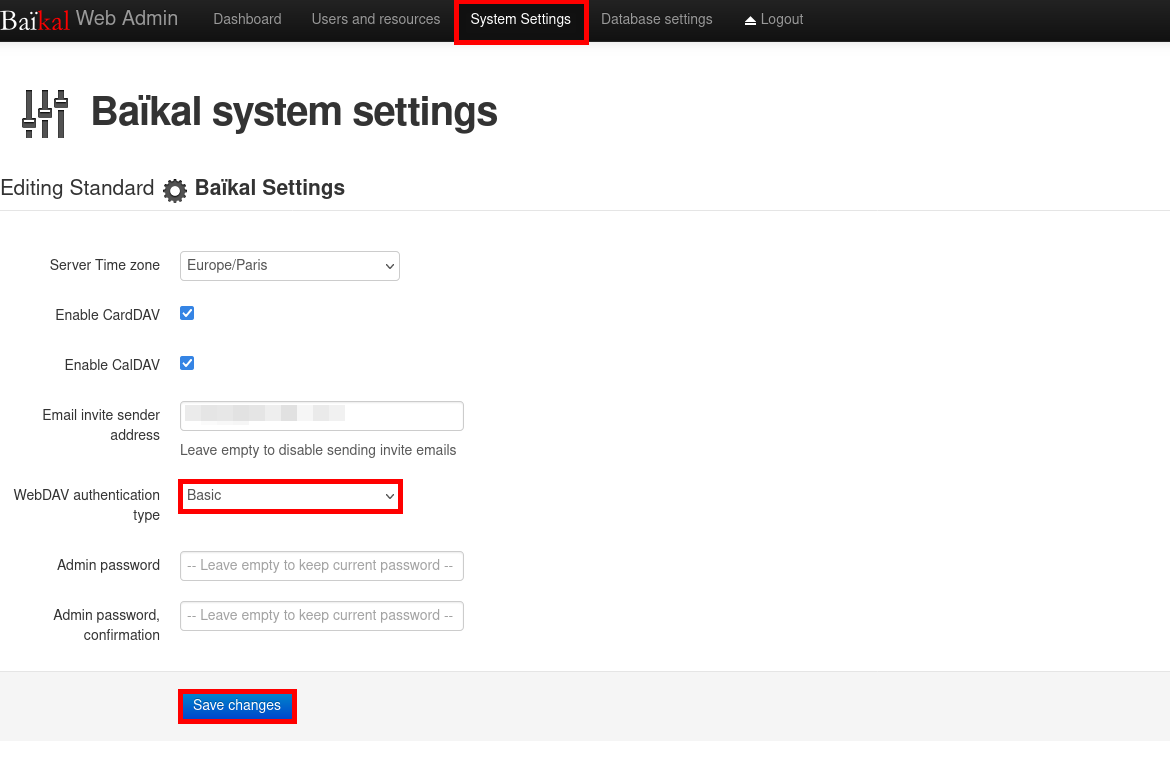

The Baïkal WebDAV authentication type menu.

CalDAV server with self-signed certificate

If you're using a self-signed certificate on your CalDAV server, you can either enable HTTP or add the root certificate to your Roundcube server so that it's recognized as trusted. Let's take a look at how to do this with Baïkal.

Enable HTTP

From the Baïkal server, edit /etc/apache2/sites-available/000-default.conf:

<VirtualHost *:443>

    DocumentRoot /var/www/baikal/html
    ServerName baikal.std.rocks

    RewriteEngine On
    # Generally already set by global Apache configuration
    #RewriteRule .* - [E=HTTP_AUTHORIZATION:%{HTTP:Authorization}]
    RewriteRule /.well-known/carddav /dav.php [R=308,L]
    RewriteRule /.well-known/caldav  /dav.php [R=308,L]

    <Directory "/var/www/baikal/html">
        Options None
        # If you install cloning git repository, you may need the following
        Options +FollowSymlinks
        AllowOverride None
        # Configuration for apache-2.4:
        Require all granted
        # Configuration for apache-2.2:
        # Order allow,deny
        # Allow from all
    </Directory>

    <IfModule mod_expires.c>
        ExpiresActive Off
    </IfModule>

    SSLEngine On

    #AUTOGENERATE CERTIFICATES
    SSLCertificateFile    /etc/apache2/ssl/cert.pem
    SSLCertificateKeyFile /etc/apache2/ssl/selfsigned.key

</VirtualHost>
<VirtualHost *:80>

    DocumentRoot /var/www/baikal/html
    ServerName dav.example.org

    RewriteEngine On
    # Generally already set by global Apache configuration
    #RewriteRule .* - [E=HTTP_AUTHORIZATION:%{HTTP:Authorization}]
    RewriteRule /.well-known/carddav /dav.php [R=308,L]
    RewriteRule /.well-known/caldav  /dav.php [R=308,L]

    <Directory "/var/www/baikal/html">
        Options None
        # If you install cloning git repository, you may need the following
        Options +FollowSymlinks
        AllowOverride None
        # Configuration for apache-2.4:
        Require all granted
        # Configuration for apache-2.2:
        # Order allow,deny
        # Allow from all
    </Directory>

    <IfModule mod_expires.c>
        ExpiresActive Off
    </IfModule>

    #SSLEngine on

    #AUTOGENERATE CERTIFICATES
    #SSLCertificateFile    /etc/apache2/ssl/cert.pem
    #SSLCertificateKeyFile /etc/apache2/ssl/selfsigned.key

    #LETS ENCRYPT CERTIFICATES
    #SSLCertificateFile /etc/letsencrypt/baikal.std.rocks/fullchain.pem
    #SSLCertificateKeyFile /etc/letsencrypt/baikal.std.rocks/privkey.pem
    #SSLCertificateChainFile /etc/letsencrypt/baikal.std.rocks/chain.pem
</VirtualHost>

Install Self-Signed Root Certificate on the Roundcube Server

Copy the /etc/apache2/ssl/selsigned.crt of your CalDAV server to /usr/local/share/ca-certificates/ and then run update-ca-certificates:

root@host:~# cp selsigned.crt /usr/local/share/ca-certificates/
root@host:~# update-ca-certificates
Updating certificates in /etc/ssl/certs...
rehash: warning: skipping ca-certificates.crt,it does not contain exactly one certificate or CRL
1 added, 0 removed; done.
Running hooks in /etc/ca-certificates/update.d...
done.

Calendar Plugin

Install the Plugin

It's now time to install the calendar plugin on our Roundcube server!

Install the necessary packages:

root@host:~# apt update && apt install php-sabre-* php-curl composer wget

Change the directory to /var/lib/roundcube/:

root@host:~# cd /var/lib/roundcube/

Create a composer.json file:

{
    "name": "roundcube/calendar",
    "type": "roundcube-plugin",
    "description": "Calendar plugin",
    "homepage": "https://git.kolab.org/diffusion/RPK/",
    "license": "AGPLv3",
    "version": "3.5.11",
    "authors": [
        {
            "name": "Thomas Bruederli",
            "email": "bruederli@kolabsys.com",
            "role": "Lead"
        },
        {
            "name": "Aleksander Machniak",
            "email": "machniak@kolabsys.com",
            "role": "Developer"
        }
    ],
    "repositories": {
        "libcalendaring": {
            "type": "vcs",
            "url": "https://github.com/JodliDev/libcalendaring"
        },
        "calendar": {
            "type": "vcs",
            "url": "https://github.com/JodliDev/calendar"
        },
        "0": {
            "type": "composer",
            "url": "https://plugins.roundcube.net"
        },
        "1": {
            "type": "vcs",
            "url": "https://github.com/JodliDev/libcalendaring"
        }
    },
    "require": {
        "php": ">=5.5",
        "roundcube/plugin-installer": ">=0.1.3",
        "jodlidev/libcalendaring": "dev-master",
        "kolab/libkolab": ">=3.4.0",
        "sabre/dav": ">=4.1.5"
    },
    "extra": {
        "roundcube": {
            "min-version": "1.4.0",
            "sql-dir": "drivers/database/SQL"
        }
    },
    "minimum-stability": "dev"
}

Lauch the composer tool to install the calendar plugin and use the GitHub token of your previously created account:

root@host:~# composer -vv require kolab/calendar
Do not run Composer as root/super user! See https://getcomposer.org/root for details
Continue as root/super user [yes]? yes
[…]
Reading composer.json of kolab/calendar (3.2.16)
GitHub API limit (60 calls/hr) is exhausted, could not fetch https://api.github.com/repos/JodliDev/calendar/contents/composer.json?ref=a0aacd4a737e48189cfb5a82463e8b9fe16d56ea. Create a GitHub OAuth token to go over the API rate limit. You can also wait until 2024-02-09 16:43:21 for the rate limit to reset.

When working with _public_ GitHub repositories only, head to https://github.com/settings/tokens/new?scopes=&description=Composer+on+roundcube+2024-02-09+1543 to retrieve a token.
This token will have read-only permission for public information only.
When you need to access _private_ GitHub repositories as well, go to https://github.com/settings/tokens/new?scopes=repo&description=Composer+on+roundcube+2024-02-09+1543
Note that such tokens have broad read/write permissions on your behalf, even if not needed by Composer.
Tokens will be stored in plain text in "/root/.config/composer/auth.json" for future use by Composer.
For additional information, check https://getcomposer.org/doc/articles/authentication-for-private-packages.md#github-oauth
Token (hidden): GIT_TOKEN
[…]
roundcube/plugin-installer contains a Composer plugin which is currently not in your allow-plugins config. See https://getcomposer.org/allow-plugins
Do you trust "roundcube/plugin-installer" to execute code and wish to enable it now? (writes "allow-plugins" to composer.json) [y,n,d,?] Y
[…]
 12/15 [======================>-----]  80%  1 sec/1 sec Do you want to activate the plugin libkolab? [Y|n] Y
Updated local config at /etc/roundcube/config.inc.php
Creating package config file
Do you want to activate the plugin libcalendaring? [Y|n] Y
Updated local config at /etc/roundcube/config.inc.php
 14/15 [==========================>-]  93%  1 min/1 min Do you want to activate the plugin calendar? [Y|n] Y

Install Fixes for PHP8 and SQLite

Now, let's add the fixes for Debian 12 since it uses PHP 8, and the plugins seem to have been developed for PHP 7. The patches are available on the official GitHub plugin page : https://github.com/JodliDev/calendar/pulls.

PHP Fixes

Download the patched files and copy them into their respective folders:

root@host:~# wget https://raw.githubusercontent.com/JodliDev/calendar/e50160c2e1be4dca42788e7de9436fca1216f9f3/drivers/caldav/caldav_client.php
root@host:~# mv ./caldav_client.php /var/lib/roundcube/plugins/calendar/drivers/caldav/caldav_client.php

root@host:~# wget https://raw.githubusercontent.com/JodliDev/calendar/fa24c2f1ba0a72d83bd717fc5852a69366e39db2/calendar.php
root@host:~# mv ./calendar.php /var/lib/roundcube/plugins/calendar/calendar.php

root@host:~# wget https://raw.githubusercontent.com/JodliDev/calendar/2e526d5977da44e35722e332f0c3fc51034746ad/drivers/caldav/caldav_driver.php
root@host:~# mv caldav_driver.php /var/lib/roundcube/plugins/calendar/drivers/caldav/caldav_driver.php

SQLite Fixes

We now need to apply fixes for the SQLite database (who said it was a good idea to use it?)!

calendar.php

Modify line 439 in /var/lib/roundcube/plugins/calendar/calendar.php:

//$select->add($choices);
foreach ($choices as $choice) {
	$select->add($choice, $choice);
}

sqlite.initial.sql

Download the sqlite.initial.sql and apply the patch:

root@host:~# wget https://raw.githubusercontent.com/JodliDev/calendar/c221f134063f21047cd9c2aefa120c6903dc84bd/drivers/caldav/SQL/sqlite.initial.sql
root@host:~# sqlite3 /var/lib/dbconfig-common/sqlite3/roundcube/roundcube < sqlite.initial.sql

caldav_driver.php

Modify line 301 in /var/lib/roundcube/plugins/calendar/drivers/caldav/caldav_driver.php:

//if($this->rc->db->affected_rows($result)) continue;
if($this->rc->db->num_rows($result) > 0) continue;

Modify line 2066 in /var/lib/roundcube/plugins/calendar/drivers/caldav/caldav_driver.php:

//$base_uri = $tokens['scheme']."://".$tokens['host'].(isset($tokens['port']) ? ":".$tokens['port'] : null);
$base_uri = $tokens['scheme']."://".$tokens['host'].($tokens['port'] ? ":".$tokens['port'] : null);

Modify line 2266 in /var/lib/roundcube/plugins/calendar/drivers/caldav/caldav_driver.php:

// no local event -> create event
// else
else if(isset($update["remote_event"]))

Modify line 2305 in /var/lib/roundcube/plugins/calendar/drivers/caldav/caldav_driver.php:

private function _is_synced($cal_id)
    {
	//ADD THIS LINES :
        if ($this->rc->db->db_provider == 'sqlite') {
            // this is a minimal
            $query = $this->rc->db->query(
		"UPDATE ".$this->db_calendars." ".
                "SET caldav_last_change = CURRENT_TIMESTAMP WHERE calendar_id = ?",
                $cal_id);

            return false;
        }

calendar_ui.php

Comment line from 52 to 61 in /var/lib/roundcube/plugins/calendar/lib/calendar_ui.php:

//$this->cal->add_button([
//        'command'    => 'calendar',
//        'class'      => 'button-calendar',
//        'classsel'   => 'button-calendar button-selected',
//        'innerclass' => 'button-inner',
//        'label'      => 'calendar.calendar',
//        'type'       => 'link'
//    ],
//    'taskbar'
//);

Restart apache

Restart the apache2 service:
