Rclone

I was searching for a way to automatically synchronize a KeePass file between two computers that are not on the same network and don't have access to a shared drive. After some personal research, I came across the Rclone tool, which met all my requirements. It's open source, free (you can support the project here: https://rclone.org/sponsor/), and it supports a wide range of cloud storage services, including Proton Drive.

Here's what I do:
- Synchronize a KeePass file between two Windows workstations to account for modifications made by both user01 and user02.
- Utilize Proton Drive cloud storage.
- Enable Bi-Sync mode, allowing the KeePass file to be modified on both computers.

⚠️Note: Be aware that the bi-synchronization option in Rclone is still in development. Therefore, it's essential to regularly make backups of your files to prevent any potential data loss.⚠️

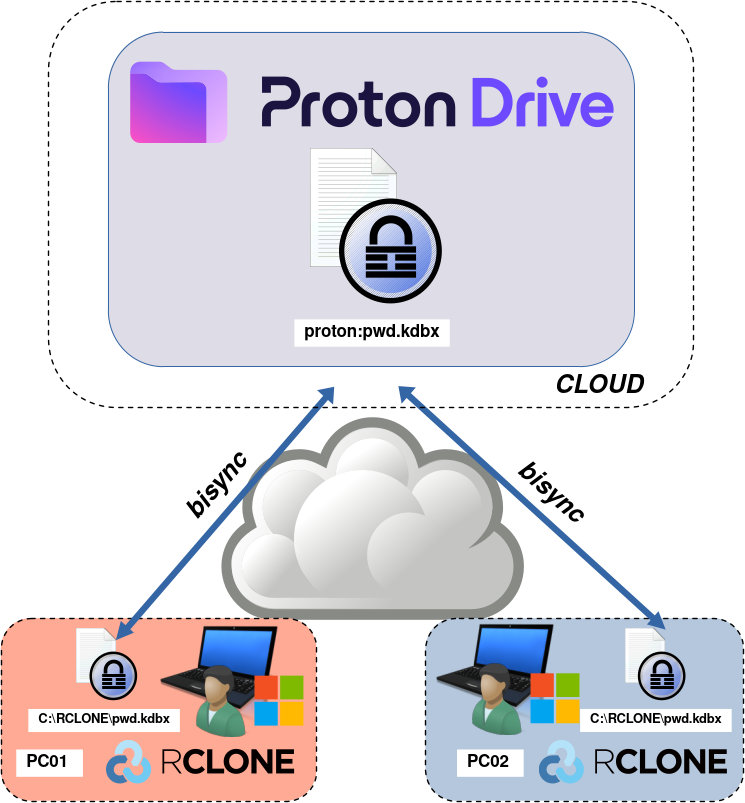

Rclone architecture showing two workstations synchronizing a KeePass file

Create a Proton Account

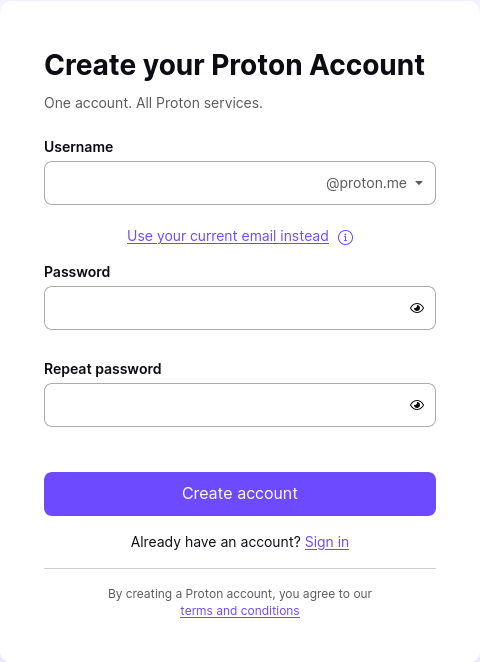

Follow this link: https://account.proton.me/signup and create a Proton Account (Note: a free account provides sufficient space for this use case):

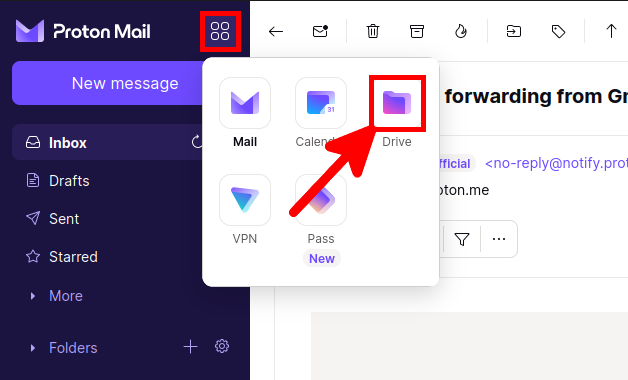

From the main menu, select Drive to enable Cloud Storage:

Configure Rclone with Proton Drive on PC01 and PC02

Download Rclone from the official website https://rclone.org/:

Choose the appropriate download link, depending on your architecture:

Select the Right Download Link Based on Your Architecture

Extract the contents of the zip archive and rename the extracted folder to rclone:

Open the terminal from the extracted folder and run the command .\rclone.exe config:

Open Terminal and Run the Rclone Configuration Command

Follow the configuration instructions and provide answers to the questions asked:

PS C:\Users\user\Downloads\rclone> .\rclone.exe config
2023/10/07 14:46:36 NOTICE: Config file "C:\\Users\\user\\AppData\\Roaming\\rclone\\rclone.conf" not found - using defaults
No remotes found, make a new one?
n) New remote
s) Set configuration password
q) Quit config
n/s/q> n

Enter name for new remote.
name> proton

Option Storage.
Type of storage to configure.
Choose a number from below, or type in your own value.
 1 / 1Fichier
   \ (fichier)
 2 / Akamai NetStorage
   \ (netstorage)
 3 / Alias for an existing remote
   \ (alias)
[…]
37 / Proton Drive
   \ (protondrive)
38 / Put.io
   \ (putio)
39 / QingCloud Object Storage
   \ (qingstor)
40 / Quatrix by Maytech
   \ (quatrix)
41 / SMB / CIFS
   \ (smb)
[…]
Storage> 37

Option username.
The username of your proton account
Enter a value.
username> YOUREMAILADDRESS@proton.me

Option password.
The password of your proton account.
Choose an alternative below.
y) Yes, type in my own password
g) Generate random password
y/g> y
Enter the password:
password: ********
Confirm the password:
password: ********

Option 2fa.
The 2FA code
The value can also be provided with --protondrive-2fa=000000
The 2FA code of your proton drive account if the account is set up with
two-factor authentication
Enter a value. Press Enter to leave empty.
2fa>

Edit advanced config?
y) Yes
n) No (default)
y/n> n

Configuration complete.
Options:
- type: protondrive
- username: YOUREMAILADDRESS@proton.me
- password: *** ENCRYPTED ***
Keep this "proton" remote?
y) Yes this is OK (default)
e) Edit this remote
d) Delete this remote
y/e/d> y

Current remotes:

Name                 Type
====                 ====
proton               protondrive

e) Edit existing remote
n) New remote
d) Delete remote
r) Rename remote
c) Copy remote
s) Set configuration password
q) Quit config
e/n/d/r/c/s/q> q

Check the connection to Proton Drive:

PS C:\Users\user\Downloads\rclone> .\rclone.exe ls proton:

If you receive this error message, make sure that you have previously opened the Proton Drive application from the web interface, as demonstrated above:

2023/10/07 15:44:12.806871 ERROR RESTY 401 GET https://mail.proton.me/api/core/v4/users: Invalid access token (Code=401, Status=401), Attempt 1
2023/10/07 15:44:12.945153 ERROR RESTY 422 POST https://mail.proton.me/api/auth/v4/refresh: Invalid refresh token (Code=10013, Status=422), Attempt 1
2023/10/07 15:44:16 mainShare &proton.Share{ShareMetadata:proton.ShareMetadata{ShareID:"", LinkID:"", VolumeID:"", Type:0, State:0, CreationTime:0, ModifyTime:0, Creator:"", Flags:0, Locked:false, VolumeSoftDeleted:false}, AddressID:"", AddressKeyID:"", Key:"", Passphrase:"", PassphraseSignature:""}
2023/10/07 15:44:16 shares []proton.ShareMetadata{}
2023/10/07 15:44:16 Failed to create file system for "proton:": couldn't initialize a new proton drive instance: the main share assumption has failed

Using Rclone

Once the Cloud Storage is configured, let's explore what we can do with this tool.

Print the configured remotes:

PS C:\Users\user\Downloads\rclone> .\rclone.exe listremotes
proton:

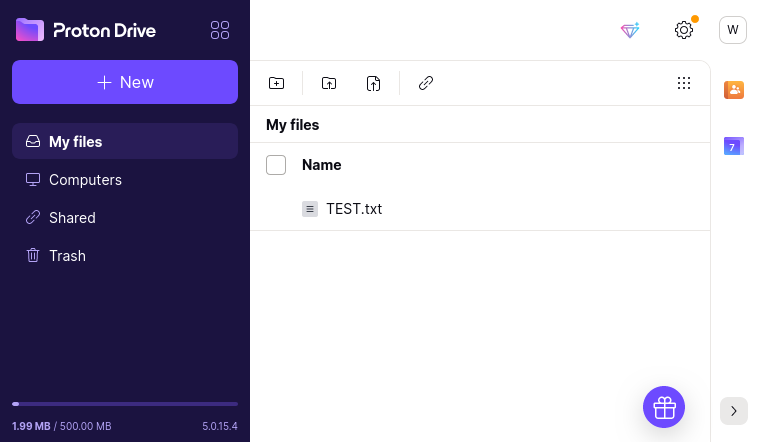

Create an empty TEST.txt file in Proton Drive:

PS C:\Users\user\Downloads\rclone> .\rclone.exe touch proton:TEST.txt a TEST.txt File from Proton Drive web interface

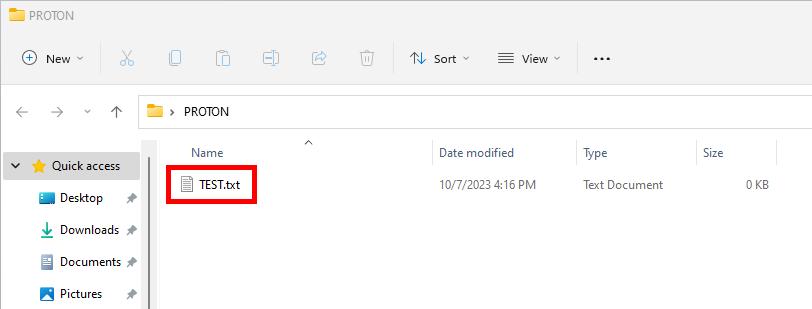

Synchronize Cloud Drive with the local folder C:\Users\user\Desktop\PROTON\:

PS C:\Users\user\Downloads\rclone> .\rclone.exe sync proton: C:\Users\user\Desktop\PROTON\ A TEST.txt File in a windows explorer

List files in your Cloud Drive:

PS C:\Users\user\Downloads\rclone> .\rclone.exe ls proton:
0 TEST.txt

Check the version and update Rclone to the latest version if one is available:

PS C:\Users\user\Downloads\rclone> .\rclone.exe selfupdate
2023/10/07 16:39:33 NOTICE: rclone is up to date

Display all available Rclone options:

PS C:\Users\user\Downloads\rclone> .\rclone.exe
Usage:
  rclone [flags]
  rclone [command]

Available Commands:
  about       Get quota information from the remote.
  authorize   Remote authorization.
  backend     Run a backend-specific command.
  bisync      Perform bidirectional synchronization between two paths.
  cat         Concatenates any files and sends them to stdout.
  check       Checks the files in the source and destination match.
  checksum    Checks the files in the source against a SUM file.
  cleanup     Clean up the remote if possible.
  completion  Output completion script for a given shell.
  config      Enter an interactive configuration session.
  copy        Copy files from source to dest, skipping identical files.
  copyto      Copy files from source to dest, skipping identical files.
  copyurl     Copy url content to dest.
  cryptcheck  Cryptcheck checks the integrity of an encrypted remote.
  cryptdecode Cryptdecode returns unencrypted file names.
  dedupe      Interactively find duplicate filenames and delete/rename them.
  delete      Remove the files in path.
  deletefile  Remove a single file from remote.
  gendocs     Output markdown docs for rclone to the directory supplied.
  hashsum     Produces a hashsum file for all the objects in the path.
  help        Show help for rclone commands, flags and backends.
  link        Generate public link to file/folder.
  listremotes List all the remotes in the config file and defined in environment variables.
  ls          List the objects in the path with size and path.
  lsd         List all directories/containers/buckets in the path.
  lsf         List directories and objects in remote:path formatted for parsing.
  lsjson      List directories and objects in the path in JSON format.
  lsl         List the objects in path with modification time, size and path.
  md5sum      Produces an md5sum file for all the objects in the path.
  mkdir       Make the path if it doesn't already exist.
  mount       Mount the remote as file system on a mountpoint.
  move        Move files from source to dest.
  moveto      Move file or directory from source to dest.
  ncdu        Explore a remote with a text based user interface.
  obscure     Obscure password for use in the rclone config file.
  purge       Remove the path and all of its contents.
  rc          Run a command against a running rclone.
  rcat        Copies standard input to file on remote.
  rcd         Run rclone listening to remote control commands only.
  rmdir       Remove the empty directory at path.
  rmdirs      Remove empty directories under the path.
  selfupdate  Update the rclone binary.
  serve       Serve a remote over a protocol.
  settier     Changes storage class/tier of objects in remote.
  sha1sum     Produces an sha1sum file for all the objects in the path.
  size        Prints the total size and number of objects in remote:path.
  sync        Make source and dest identical, modifying destination only.
  test        Run a test command
  touch       Create new file or change file modification time.
  tree        List the contents of the remote in a tree like fashion.
  version     Show the version number.

Use "rclone [command] --help" for more information about a command.
Use "rclone help flags" for to see the global flags.
Use "rclone help backends" for a list of supported services.

Configure Bisynchronization

Now that we've briefly explored how to use Rclone, let's return to our primary scenario: bisynchronization of a KeePass file between two hosts.

PC01

Create a C:\RCLONE\ directory:

PS C:\Users\user\Downloads\rclone> mkdir C:\RCLONE

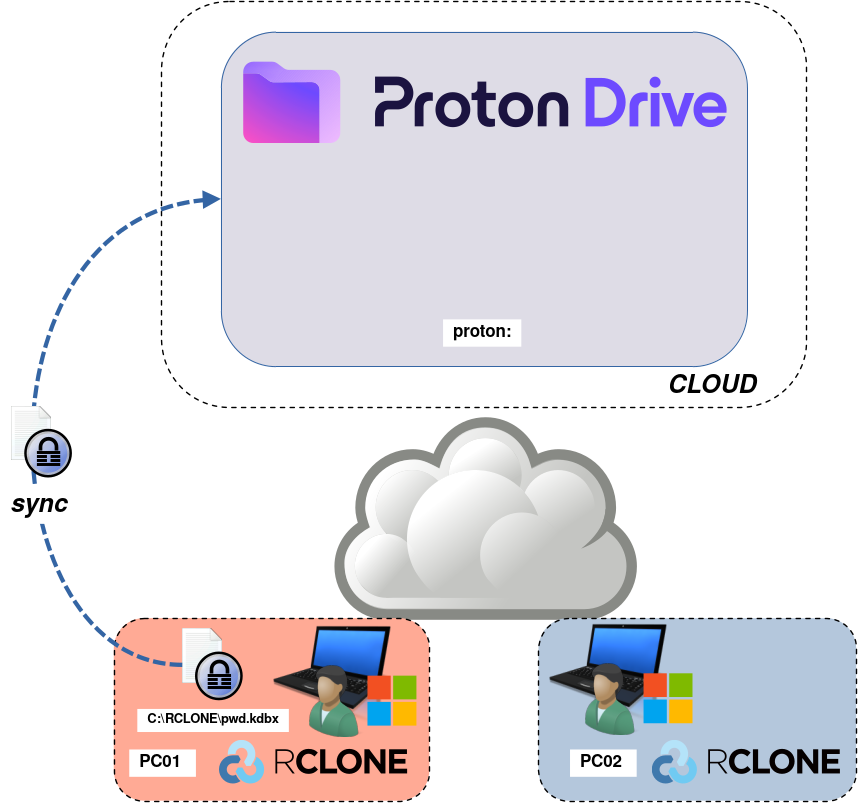

Send the C:\RCLONE\pwd.kdbx file to Proton Drive:

PS C:\Users\user\Downloads\rclone> .\rclone.exe sync C:\RCLONE\pwd.kdbx proton: Diagram showing the Send of a pwd.kdbx File to Proton Drive

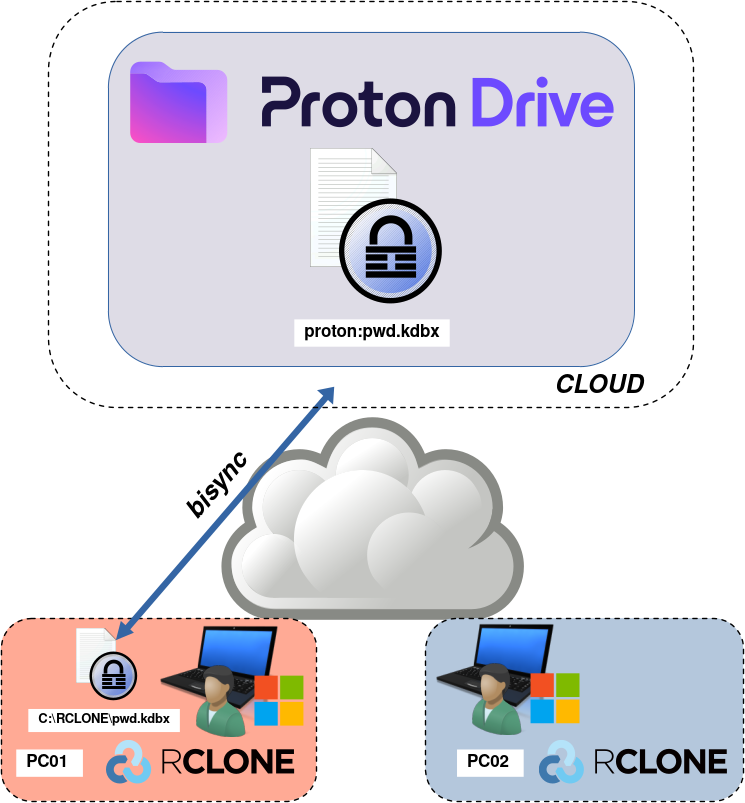

Enable bisync between C:\RCLONE\ and Proton Drive:

PS C:\Users\user\Downloads\rclone> .\rclone.exe bisync C:\RCLONE\ proton: --resync $Diagram showing the Bisynchronization between C:\RCLONE\ and Proton Drive$

Perform a bidirectional synchronization between C:\RCLONE\ and Proton Drive:

PS C:\Users\user\Downloads\rclone> .\rclone.exe bisync C:\RCLONE\ proton: --force

PC02

Create a C:\RCLONE\ directory:

PS C:\Users\user\Downloads\rclone> mkdir C:\RCLONE

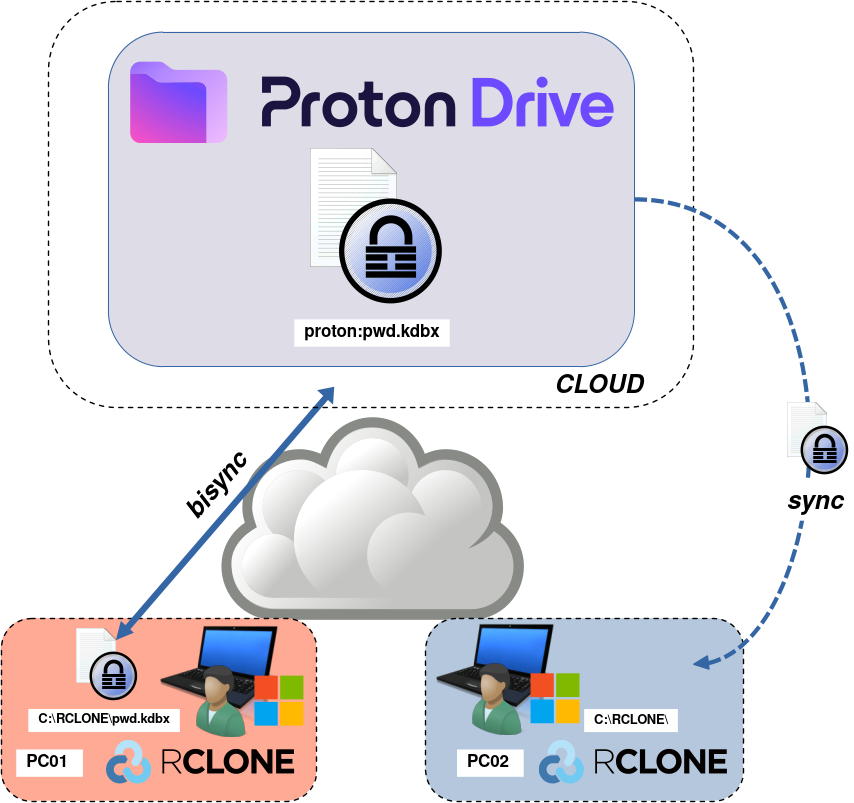

Send the pwd.kdbx file from the Proton Drive to C:\RCLONE\:

PS C:\Users\user\Downloads\rclone> .\rclone.exe sync proton: C:\RCLONE\ Diagram showing the Send of a pwd.kdbx File from Proton Drive

Enable bisync between C:\RCLONE\ and Proton Drive:

PS C:\Users\user\Downloads\rclone> .\rclone.exe bisync C:\RCLONE\ proton: --resync $Diagram showing the Bisynchronization between C:\RCLONE\ and Proton Drive$

Perform a bidirectional synchronization between C:\RCLONE\ and Proton Drive:

PS C:\Users\user\Downloads\rclone> .\rclone.exe bisync C:\RCLONE\ proton: --force

Automate Bisynchronization with Task Scheduler

Now that our architecture is configured to work, we still need to manually run the .\rclone.exe bisync C:\RCLONE\ proton: --force command on each computer every time the pwd.kdbx file is modified. To automate this process, we'll use a batch script that will be executed by the Windows Task Scheduler.

Batch Script

Create a C:\rclone.bat script.

@echo off

REM VARIABLES
set SOURCE=C:\RCLONE
set DESTINATION=proton:
set DOWNLOADS=C:\Users\USERNAME\Downloads

REM UPDATE RCLONE TO LATEST RELEASE
%DOWNLOADS%"\rclone\rclone.exe" selfupdate
REM FORCE BISYNC
%DOWNLOADS%"\rclone\rclone.exe" bisync %SOURCE% %DESTINATION% --force

Windows Task Scheduler

Open the Windows Task Scheduler:

Create a new task:

Give a name to the task and configure it:

In the Triggers tab, click New… and configure the task to run every 5 minutes (adjust this value according to your needs):

Setting Task Trigger to Run Every 5 Minutes

In the Actions tab, click New… and set the previously created batch script, adding C:\Users\user\Downloads\rclone\ in the Start in option:

Configuring Task Actions and Start Directory

Finally, in the Conditions tab, specify that the task should only start if a network connection is available:

Setting Task Condition to Start Only with Network Connection
